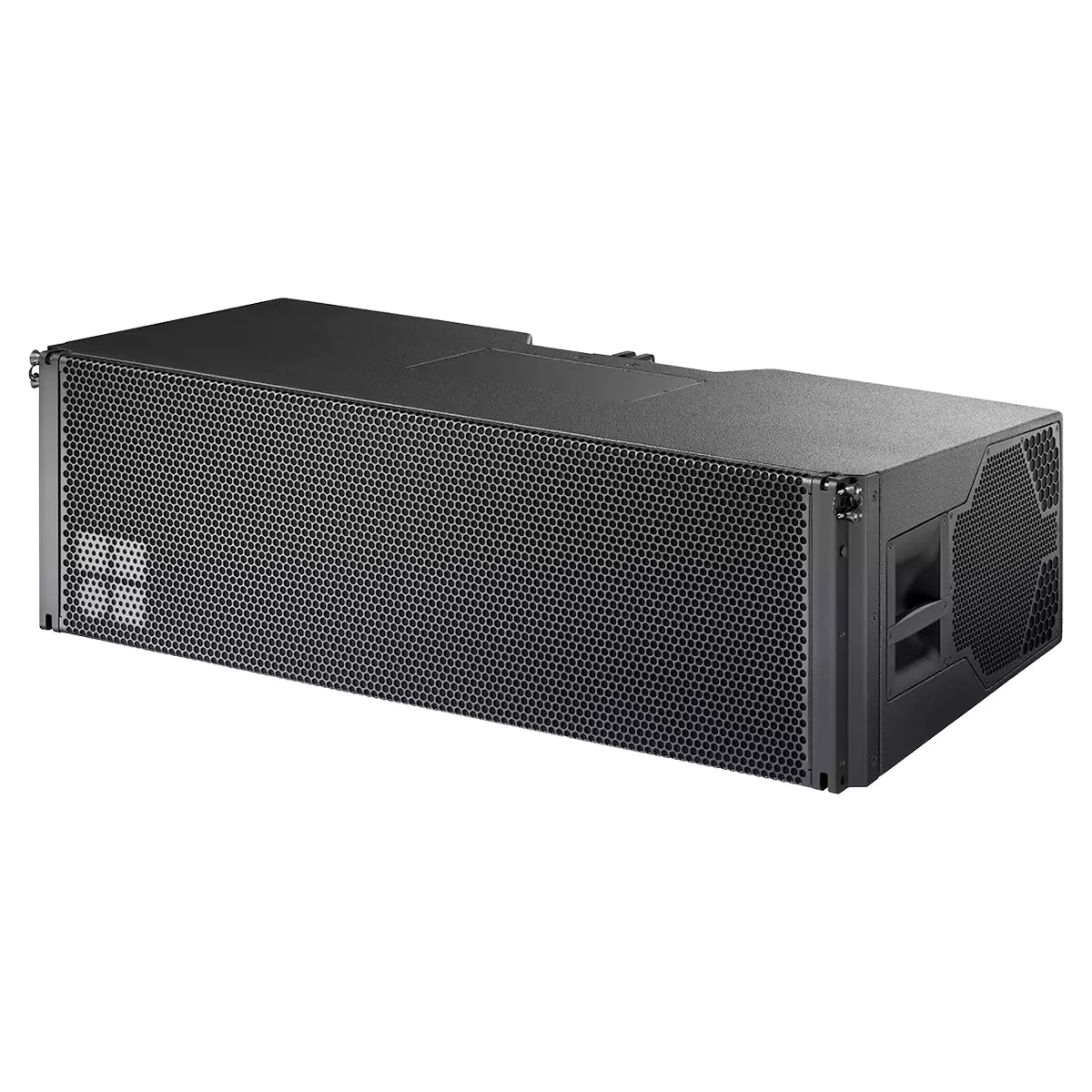

The GSL12 is a premium line array module designed specifically for large-scale audio broadcasting applications. Manufactured by d&b audiotechnik, this professional loudspeaker delivers exceptional sound quality and coverage for major events and productions.

Key Features:

• Superior Coverage: Features a consistent 120° horizontal directivity dispersion
• Scalable Design: Ability to fly up to twenty-four GSL12 units vertically for extensive coverage
• Advanced Driver Configuration:
  • Two forward-facing 14" neodymium LF drivers
  • Two 10" neodymium LF drivers on the sides
  • Coaxial mid-high section with 10" MF horn
  • Three 1.4" exit compression drivers (each with 3.4" voice coil)
• Flexible Positioning: Cabinet splay angles adjustable from 0° to 7° in 1° increments
• Dual-Channel Amplification: Powered by suitable d&b amplifiers with dedicated channels for optimal performance
• Wide Frequency Range: Directive control from 45 Hz up to 18 kHz
• Durable Construction:
  • Marine-grade plywood cabinet
  • Weather-resistant PCP (Polyurea Cabinet Protection) finish
  • Sturdy metal grilles with sound-permeable, water-resistant fabric
• User-Friendly Design: Recessed grips on each side and additional handles at the back for easy handling

The GSL12's innovative design creates seamless crossover with clear transitions between frequency bands, ensuring uniform and precise horizontal sound distribution. The combination of primary and lateral firing LF drivers delivers exceptional directive control across the entire frequency spectrum.
