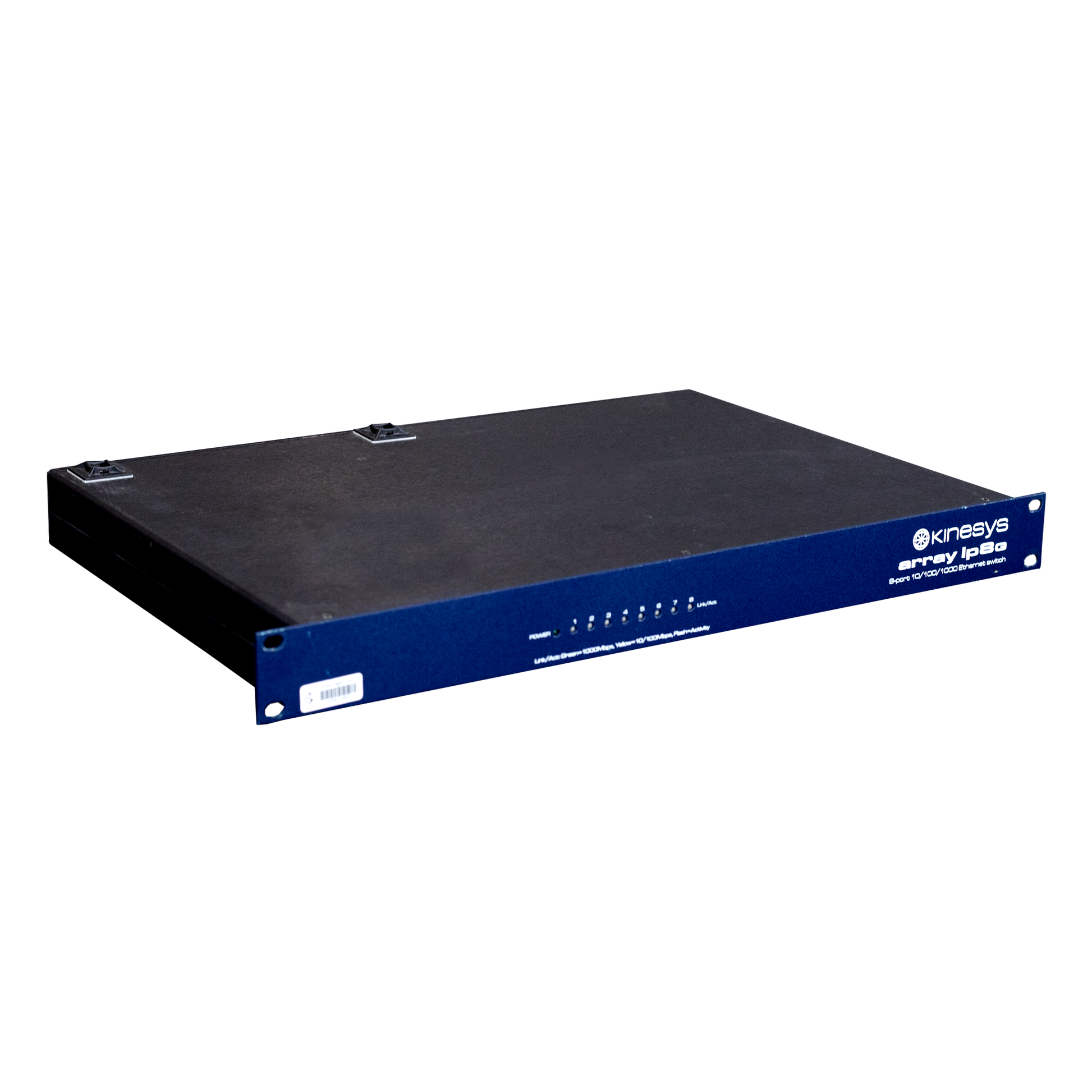

• Kinesys Array IP8 FrontLeft

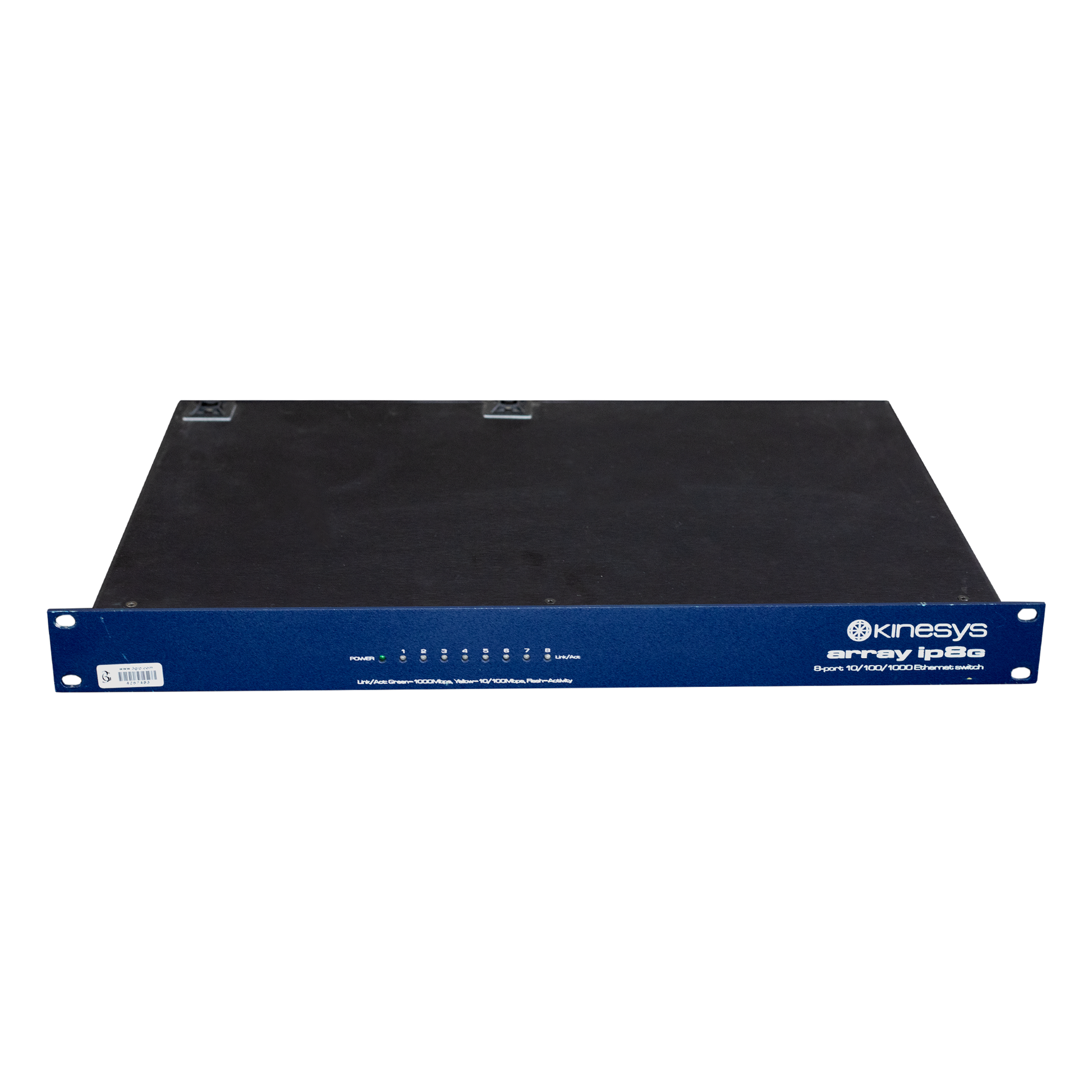

  • Kinesys Array IP8 Front

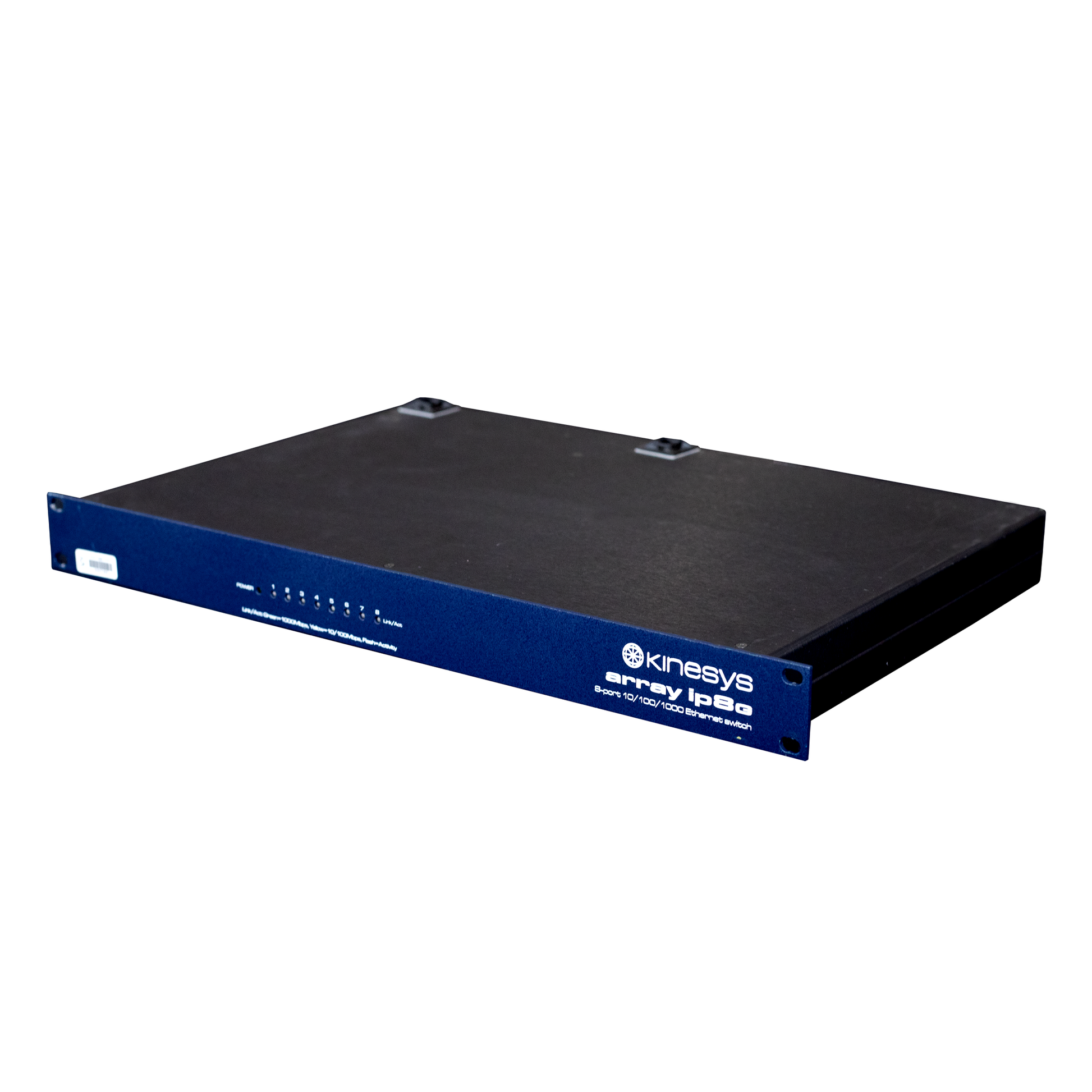

  • Kinesys Array IP8 FrontRight

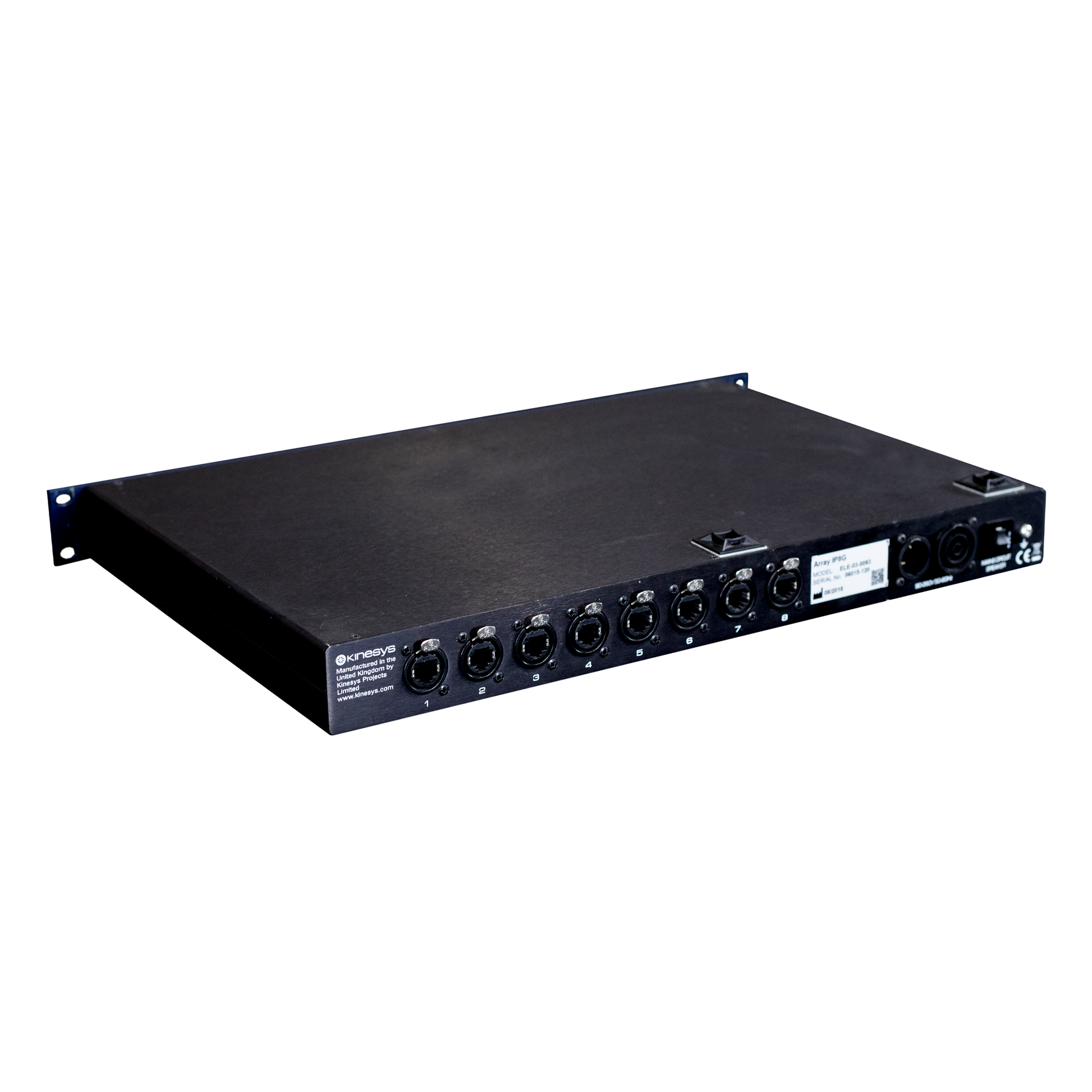

  • Kinesys Array IP8 BackLeft

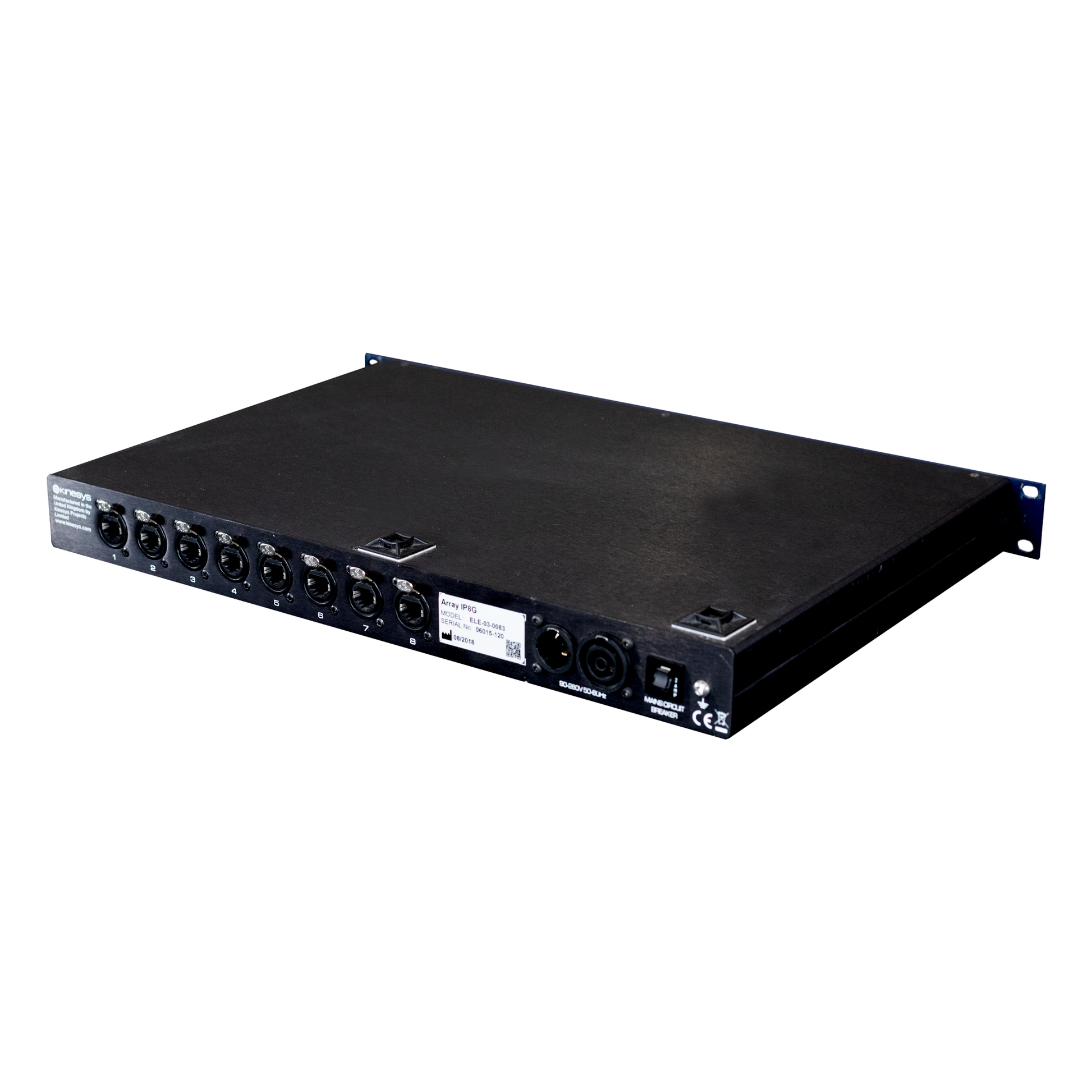

  • Kinesys Array IP8 BackRight

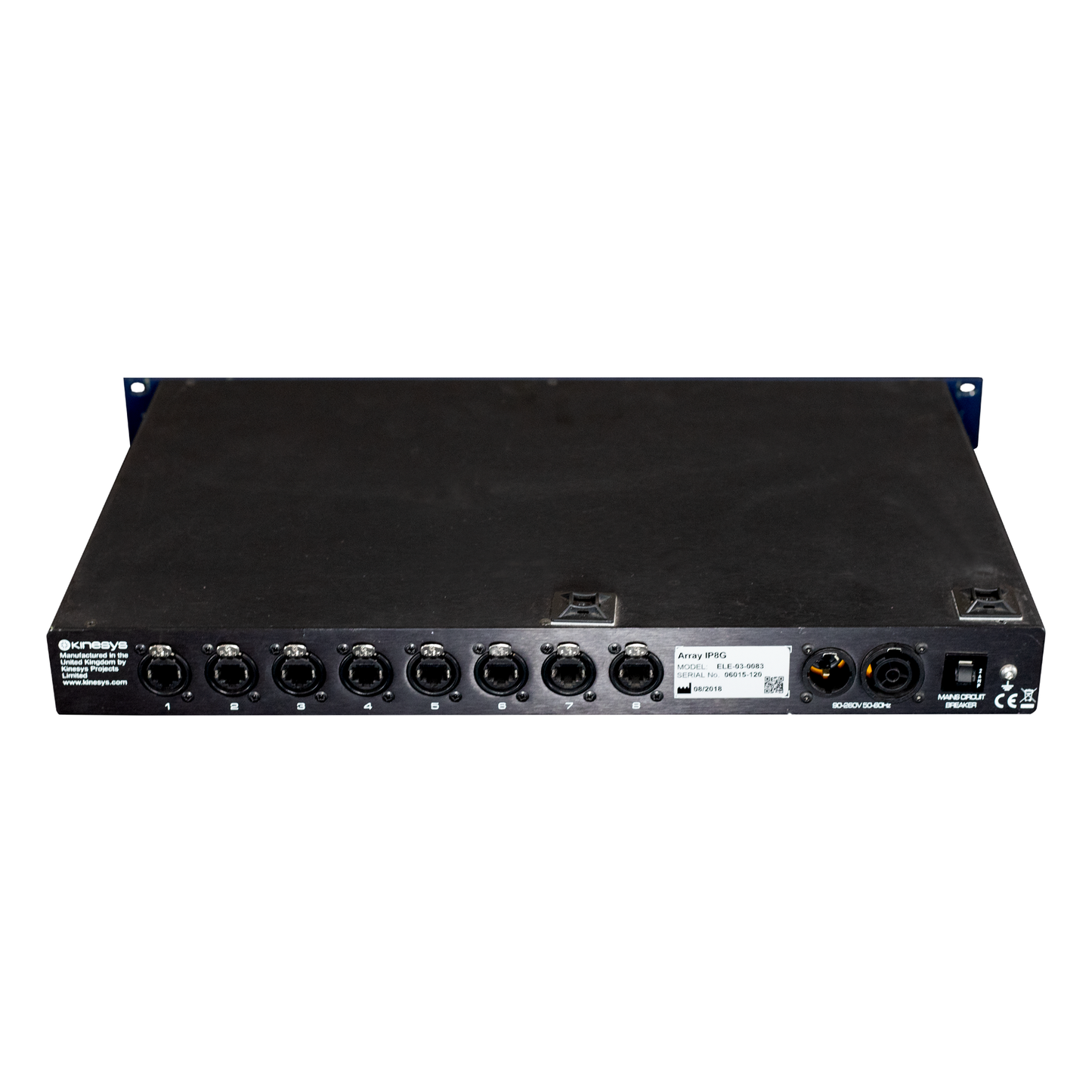

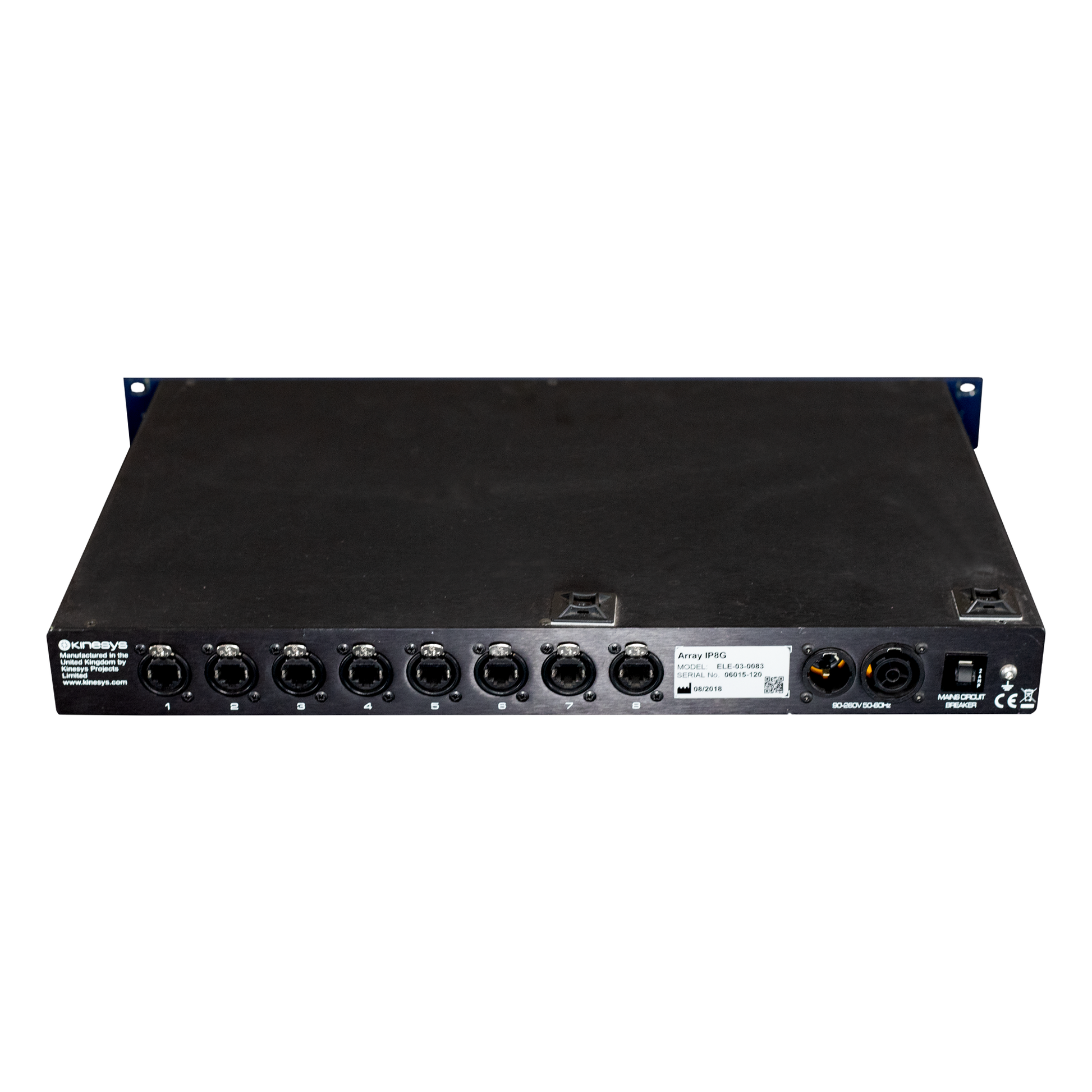

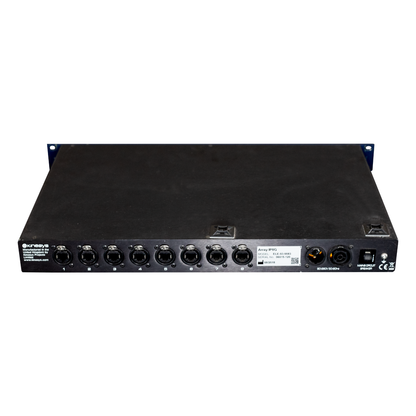

  • Kinesys Array IP8 Back
1 6

Kinesys Array IP8

$495.00
$495.00
  • ManufactureTAIT

The Kinesys Array IP8 is an 8-port Ethernet switch designed for Kinesys systems. It features durable EtherCON connectors, front-panel LEDs for easy monitoring, and a rack-mountable design. Ideal for reliable data distribution, it supports multiple devices with 10/100 BASE-T Ethernet connections.

In stock and ready to ship

  • Satisfaction GuaranteedCondition: Great
  • Free DeliveryShips from: United States



View full details

The Kinesys Array IP8 is an 8-port 10/100 Ethernet switch designed for seamless integration with Kinesys automation systems. It provides reliable network connectivity with EtherCON connectors and features clear front-panel LED indicators for power, activity, and connection speeds.

Key Features:

  • 8-Port Ethernet Switching: Offers eight 10/100 BASE-T Ethernet ports to manage multiple device connections within Kinesys systems.

  • Durable Construction: Features EtherCON connectors for robust and stable data transmission, reducing wear and tear.

  • Intuitive Monitoring: Front-facing LEDs display power, channel activity, and connection speeds, making monitoring and troubleshooting simple.

  • Rack-Mountable Design: Comes in a 1U 19" rack-mountable chassis, optimizing space in control setups.

Technical Specifications:

  • Ethernet Ports: 8 x 10/100 BASE-T (RJ45)

  • Power Requirements: 1-phase + Neutral + Earth, 50-60 Hz, 85-264V

  • Dimensions (L x H x W): 483 mm x 45 mm x 305 mm (19" x 1.75" x 12")

  • Weight: 2.0 kg (4.4 lbs)

The Kinesys Array IP8 is ideal for expanding network capabilities within Kinesys environments, providing reliable performance and efficient data distribution for demanding productions.
