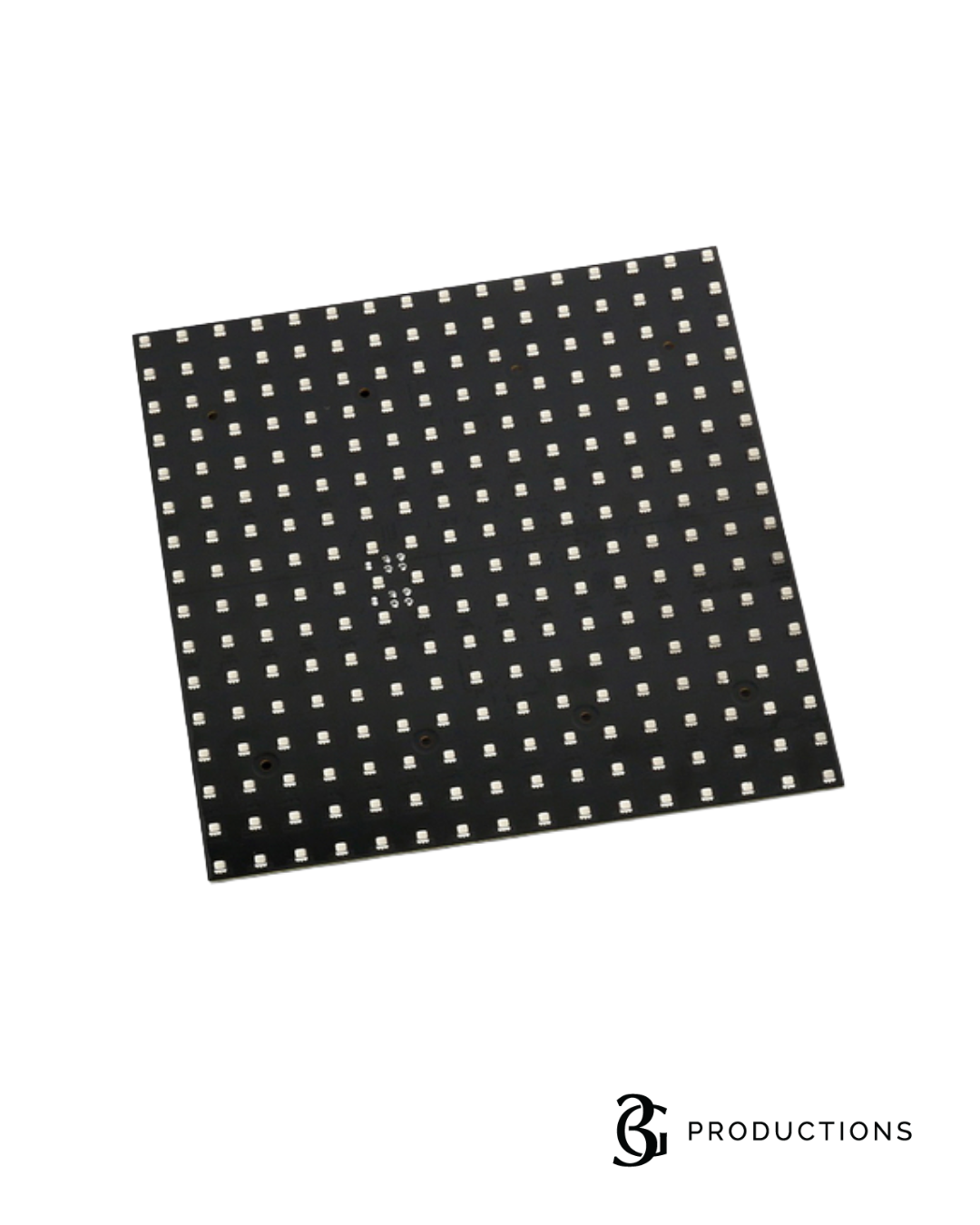

The Martin VC-Grid 16x16 15 RGB is a compact, modular LED video tile designed for creative video and lighting applications in live events, stage sets, broadcast environments, exhibits, and architectural installations. Featuring a 16 x 16 pixel array with a 15 mm pixel pitch, the VC-Grid delivers bright, fully calibrated RGB output with pixel-level control for dynamic visual effects and video content. Its lightweight design and daisy-chainable power/data system enable flexible integration into custom scenic elements and video displays. This AS IS offering includes grid modules only; PowerPorts and power/data accessories are not included.
Brand| Martin Professional
Model| VC-Grid 16x16 15 RGB
Product Type| Creative LED Video Tile
Pixel Configuration| 16 x 16 Pixels
Total Pixels| 256 Individually Controllable RGB Pixels
Pixel Pitch| 15 mm
Dimensions| 240 x 240 x 15 mm
Weight| 311 g (0.7 lb)
Brightness| 5,000 Nits
Color Processing| 16-bit per Color
Control Protocols| Martin P3 and DMX512-A
Addressing| P3 System Controller or RDM-Compliant Controller
DMX Channels| 192 (Segment Mode) or 3 (Module Mode)
Calibration| Pixel-Level Brightness and Color Calibration
LED Lifetime| 50,000+ Hours
Power/Data Connection| Combined Power and Data Daisy-Chain System
Ingress Rating| IP20
Applications| Stage Design, Broadcast, Live Events, Set Design, Exhibits, Architectural Installations
Included| LED Grid Modules Only (AS IS)
Not Included| PowerPorts, Power Supplies, Power/Data Cables, Mounting Hardware
Shipping cost will be calculated by an Account Executive once order quantities and availabilities are confirmed. Orders shipping outside of continental United States are will call only.
