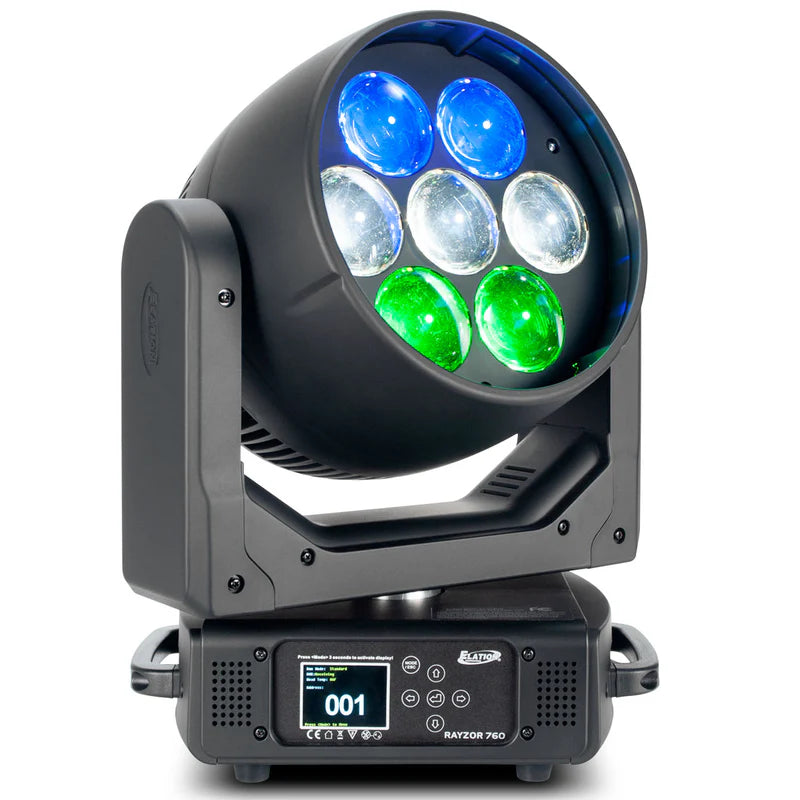

The Rayzor 760 is a professional-grade compact wash effects fixture that delivers exceptional performance and versatility for any lighting application. This powerful fixture features:

Key Features

• Powerful Output: 7 independently controlled 60W RGBW LEDs delivering over 8,000 lumens with a total power of 420W
• Innovative SparkLED™ Technology: 28 individual 2W white LEDs strategically placed inside the lens, creating a unique visual layer (patent pending)
• Versatile Zoom Range: Wide 5° to 77° zoom capability for both intense mid-air beams and wide, even wash coverage
• Continuous Movement: Fast and precise 360° continuous pan and tilt rotation for dynamic effects
• Weather Resistant: Suitable for adverse outdoor conditions

Technical Specifications

• 50,000 hour average LED life
• CRI: 80
• Beam angle: 5.4° - 57.3°
• Field angle: 7.4° - 73.3°
• Multiple DMX channel modes (25/52/80)
• Support for DMX, RDM, Art-NET, and sACN protocols
• Operating temperature: 14°F to 113°F (-10°C to 45°C)

Creative Control

• RGBW color mixing with pixel control
• Linear color temperature presets (2,700K - 8,000K)
• Electronic strobe and variable dimming curves
• Color presets and macros
• 16-bit dimming for smooth transitions

The Rayzor 760 combines powerful LED output with the unique SparkLED system and 360° movement capabilities, allowing lighting designers to create endless unique designs from mid-air beams to wide stage washes and subtle camera-friendly effects.
