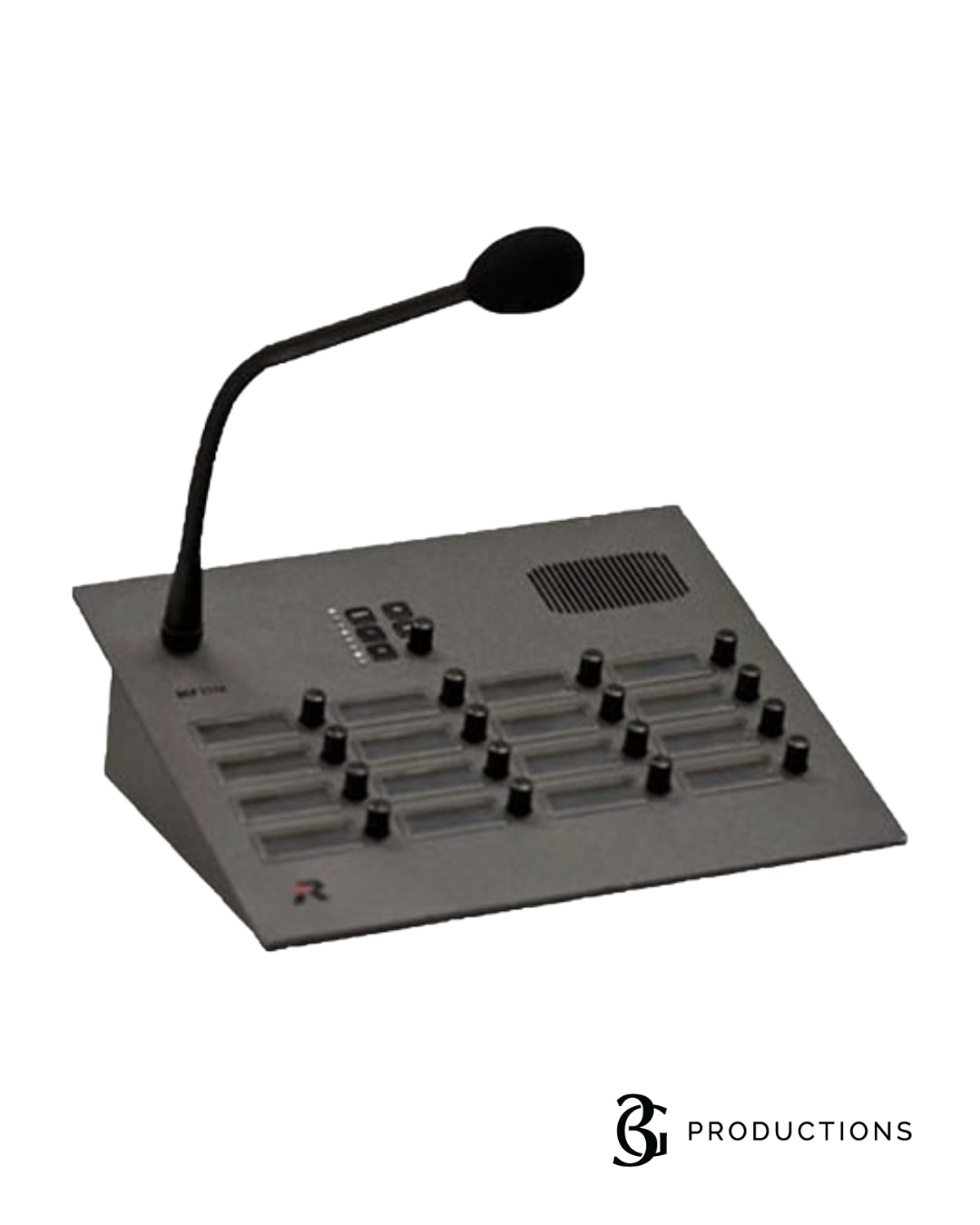

The Riedel DCP-1116E is a professional desktop intercom control panel from Riedel's 1100 Series, designed for use with Artist digital matrix intercom systems. Featuring 16 color OLED display keys, individual listen-level controls, and extensive audio and GPIO connectivity, the DCP-1116E provides fast and intuitive communications management for broadcast, live events, sports production, theaters, and control room environments. Its compact desktop form factor combines advanced functionality with an integrated power supply for streamlined deployment.
Brand| Riedel Communications
Model| DCP-1116E
Series| 1100 Series
Product Type| Desktop Intercom Control Panel
Key Displays| 16 Color OLED Display Keys
Display Colors| 65,000 Colors
Display Resolution| 140 dpi
Characters per Key| Up to 8 Characters
Function Keys| 5
Shift Pages| 1
Volume Control| Individual Rotary Encoder per Key
Master Level Control| Yes

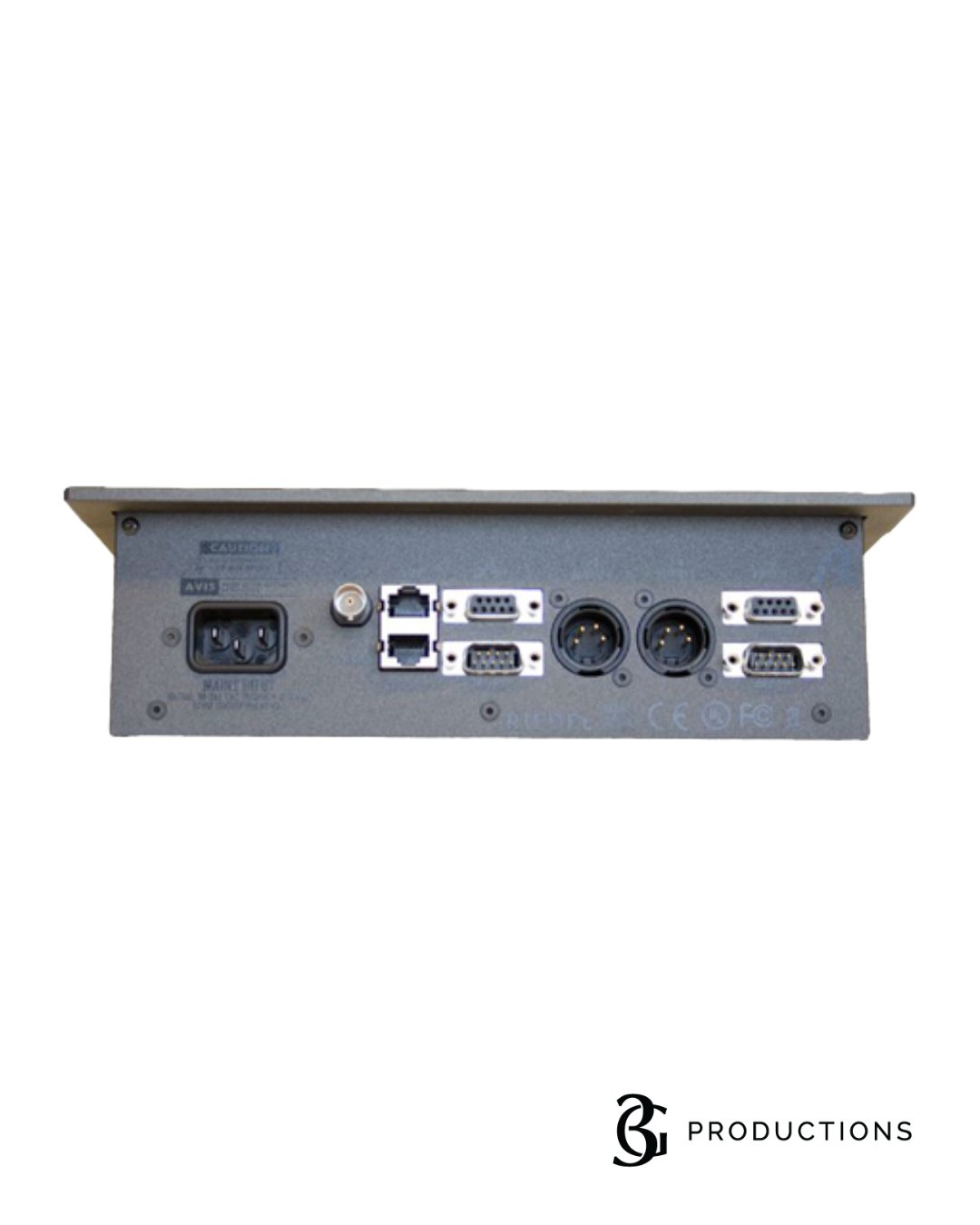

Headset Connections| 2 x 4-Pin XLR
Built-In Speaker| Yes
External Headset Connections| 2
Audio Inputs| 2 Balanced Analog Inputs
Audio Outputs| 2 Balanced Analog Outputs
GPI/GPO| 3 GPI Inputs / 3 Relay Outputs
Matrix Connection| BNC (75 Ohm) or RJ-45 (CAT-5)
Expansion Slot| Yes
Power Supply| Integrated
Microphone| Gooseneck Microphone Not Included
Applications| Broadcast, Live Production, Sports, Theatrical, Control Rooms, OB Trucks
Shipping cost will be calculated by an Account Executive once order quantities and availabilities are confirmed. Orders shipping outside of continental United States are will call only.
