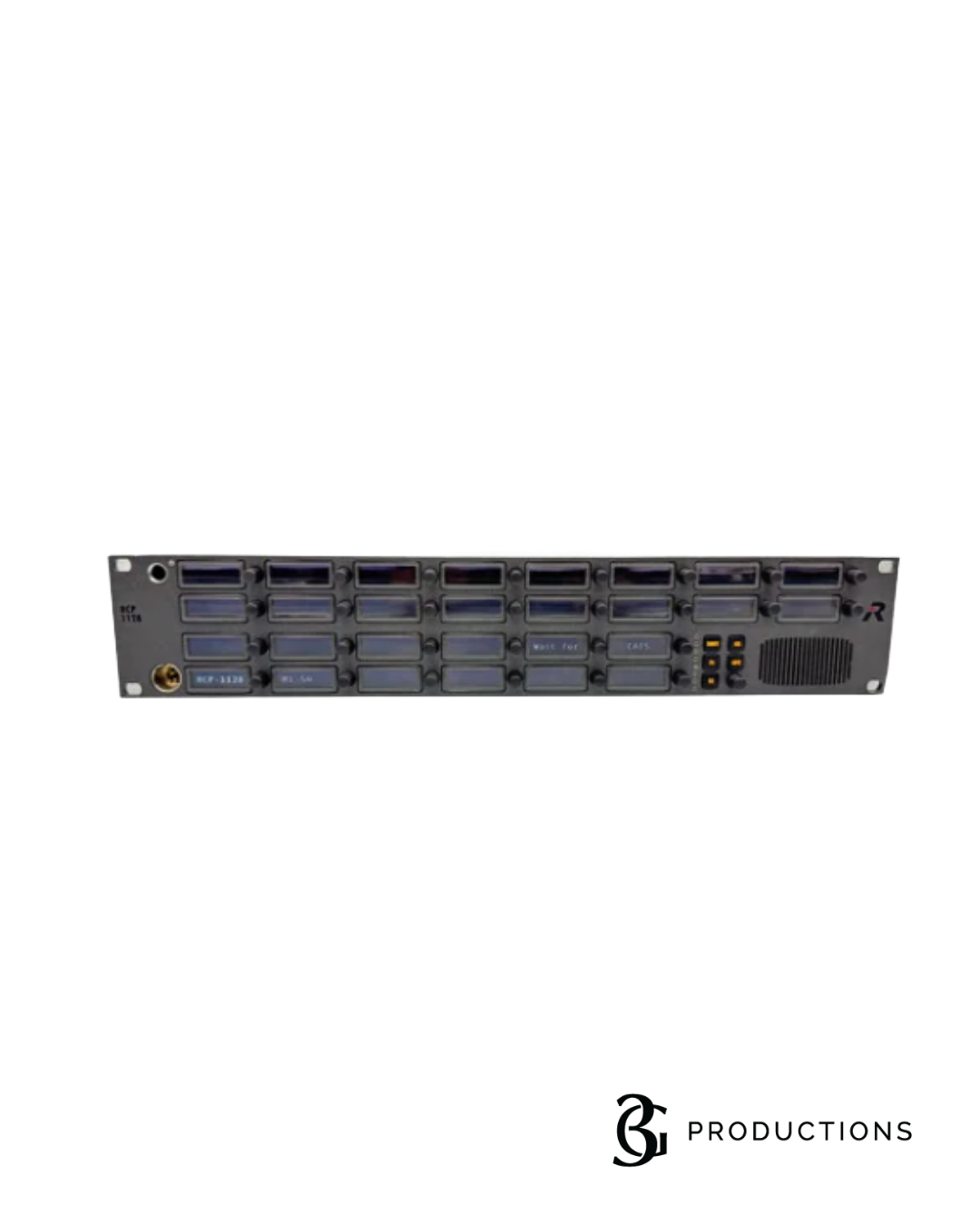

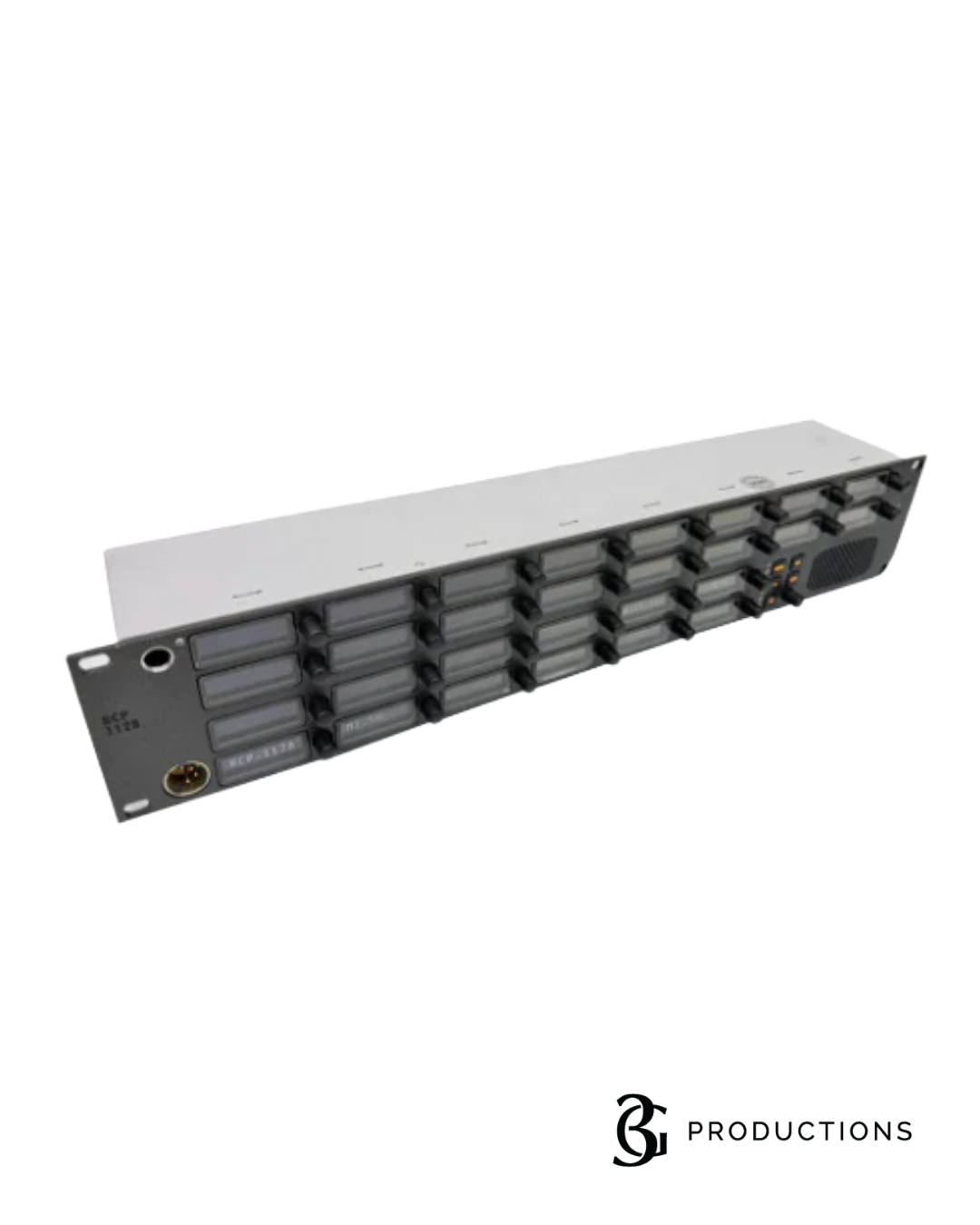

The Riedel RCP-1128 OLED is a professional 2RU rack-mounted intercom control panel designed for use with Riedel Artist digital matrix intercom systems. Part of Riedel's premium 1100 Series, the RCP-1128 features 28 high-resolution color OLED key displays with individual volume controls, providing operators with intuitive communication management in broadcast, live production, sports, and event environments. Its robust feature set includes multiple audio I/O options, GPI interfaces, headset connectivity, and an expansion slot for future system enhancements.
Brand| Riedel Communications
Model| RCP-1128 OLED
Series| 1100 Series
Product Type| Digital Matrix Intercom Control Panel
Form Factor| 19-inch Rack Mount
Rack Units| 2 RU
Display Type| High-Resolution Color OLED Key Displays
Number of Keys| 28 OLED Keys
Function Keys| 5
Shift Pages| 1
Volume Control| Individual Rotary Encoder per Key
Master Level Control| Yes
Display Colors| 65,000 Colors
Display Resolution| 140 dpi
Headset Connection| 4-Pin XLR Headset Connector
External Headset Connections| 2
Built-In Speaker| Yes
Audio Inputs| 2 Balanced Analog Inputs
Audio Outputs| 2 Balanced Analog Outputs
GPI Interfaces| 3 GPI Inputs / 3 Relay Outputs
Matrix Connection| BNC (75 Ohm) or RJ-45 (CAT-5)
Expansion Slot| Yes
Power Supply| Integrated
Overall Depth| 80 mm (Excluding Microphone)
Applications| Broadcast, Live Events, Sports Production, OB Trucks, Theatres, Production Facilities
