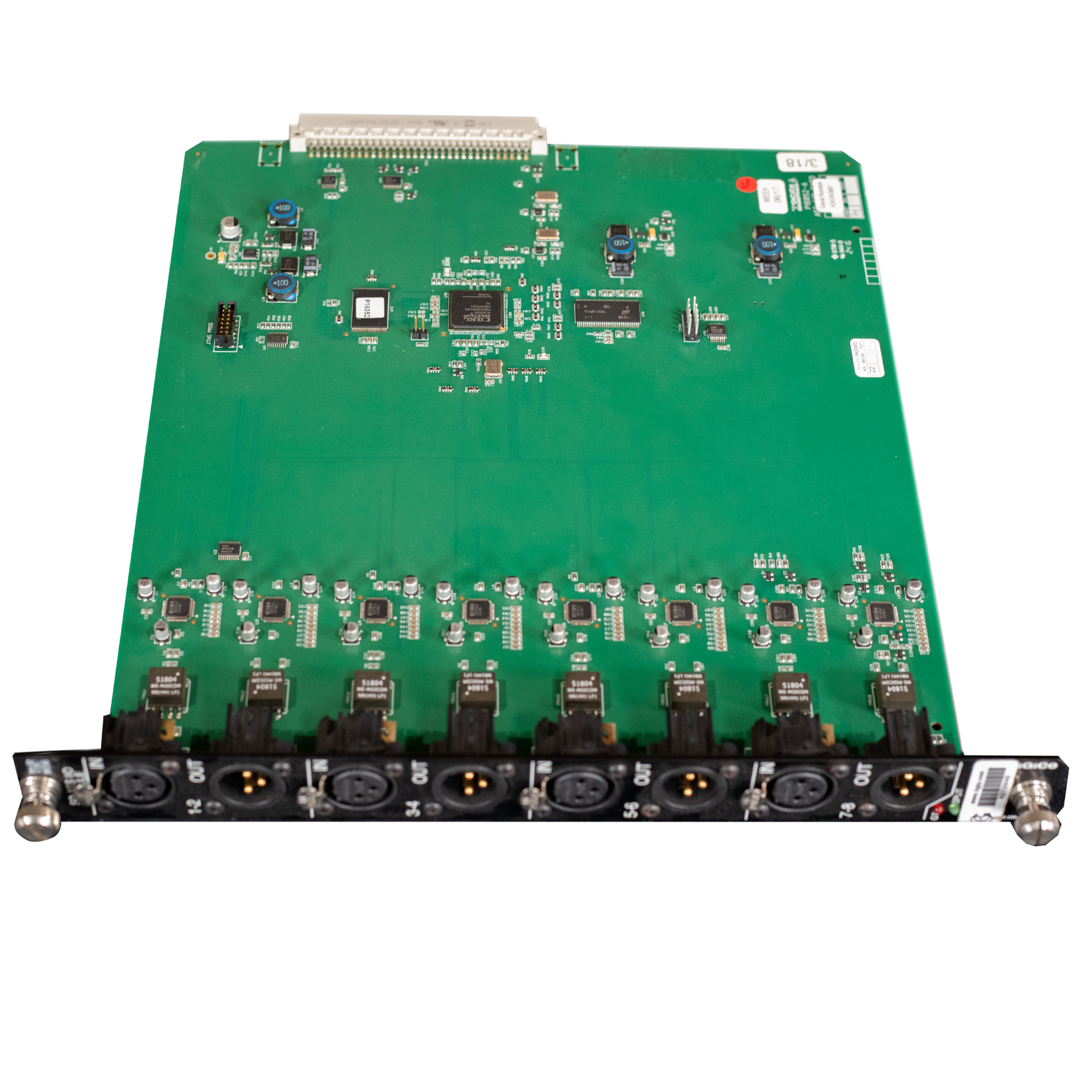

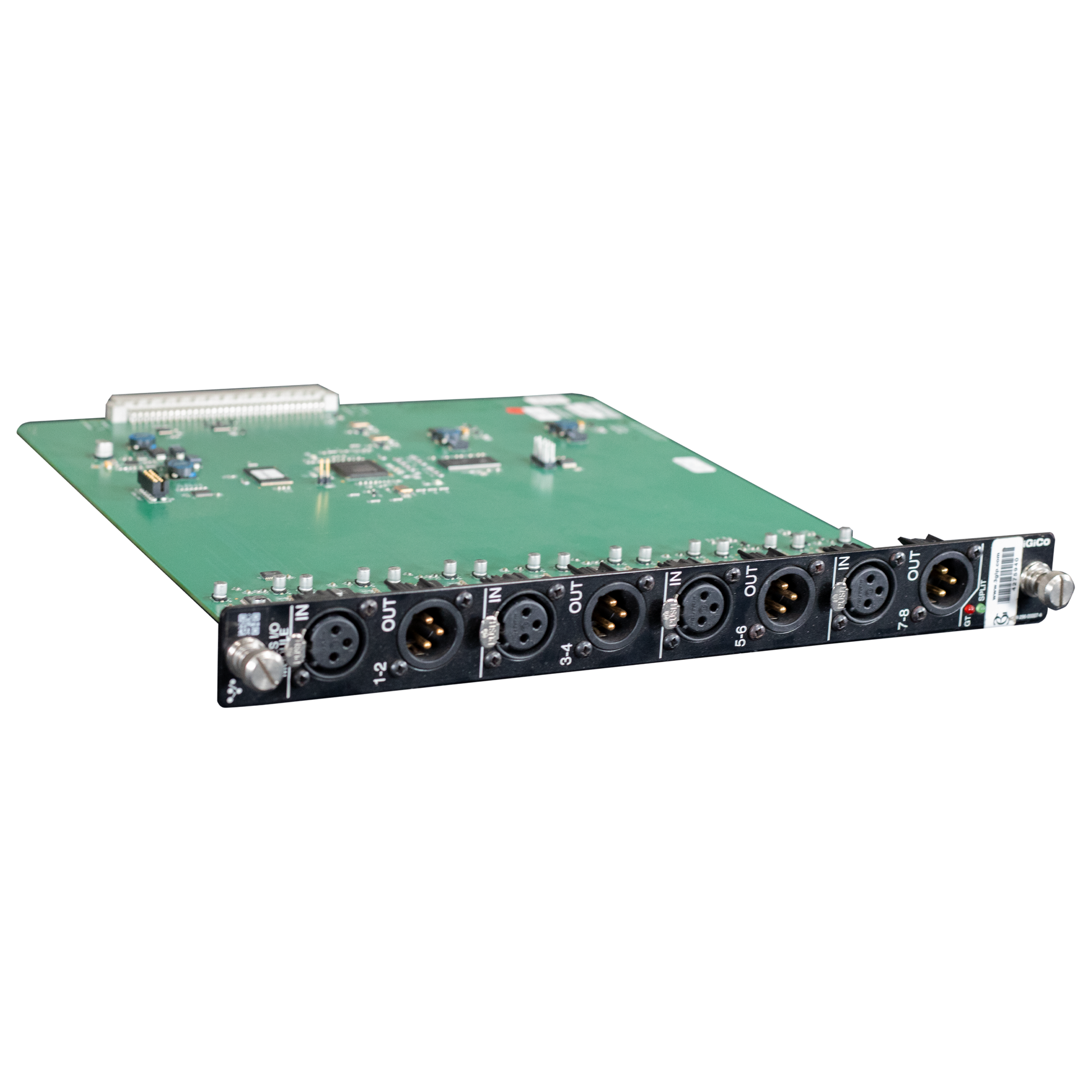

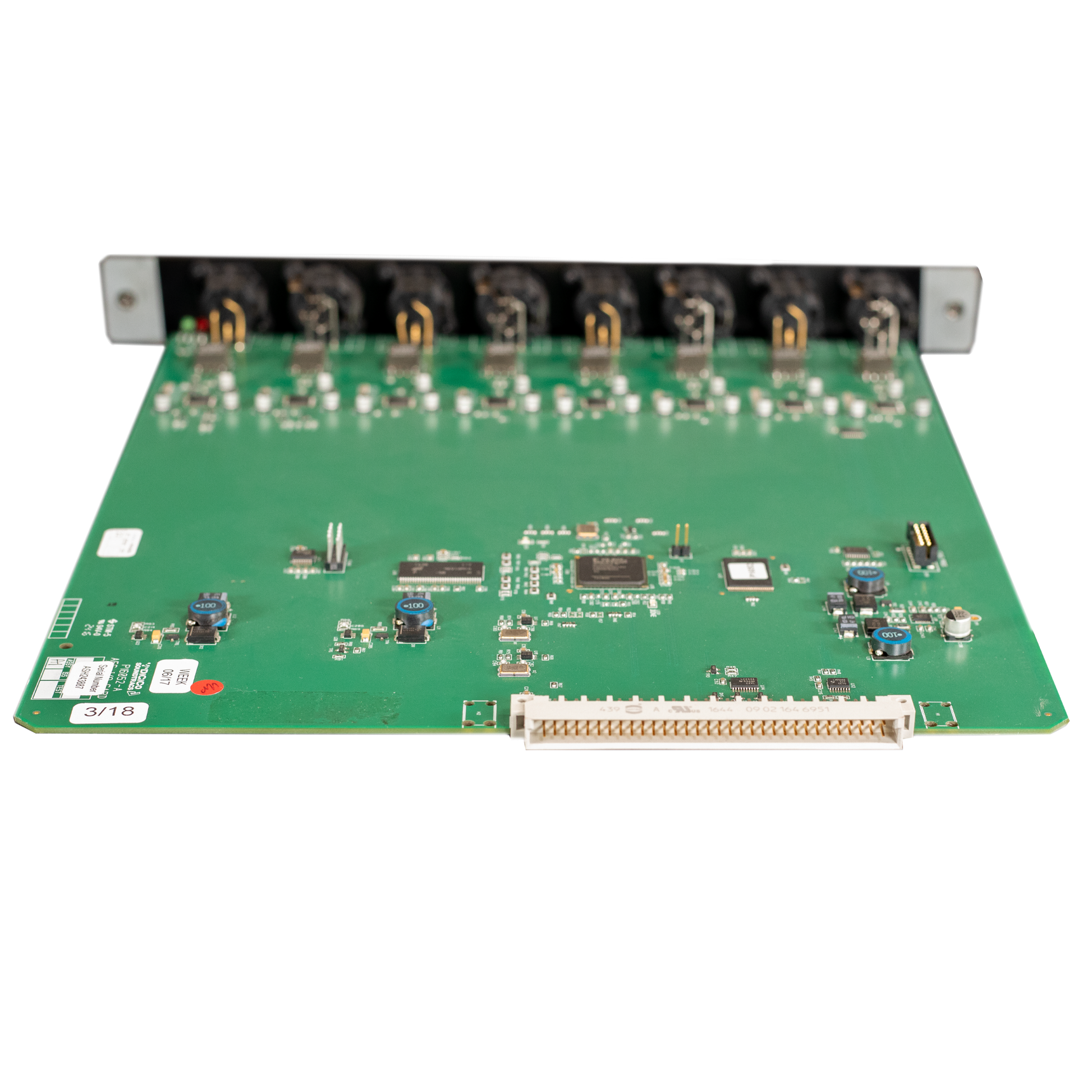

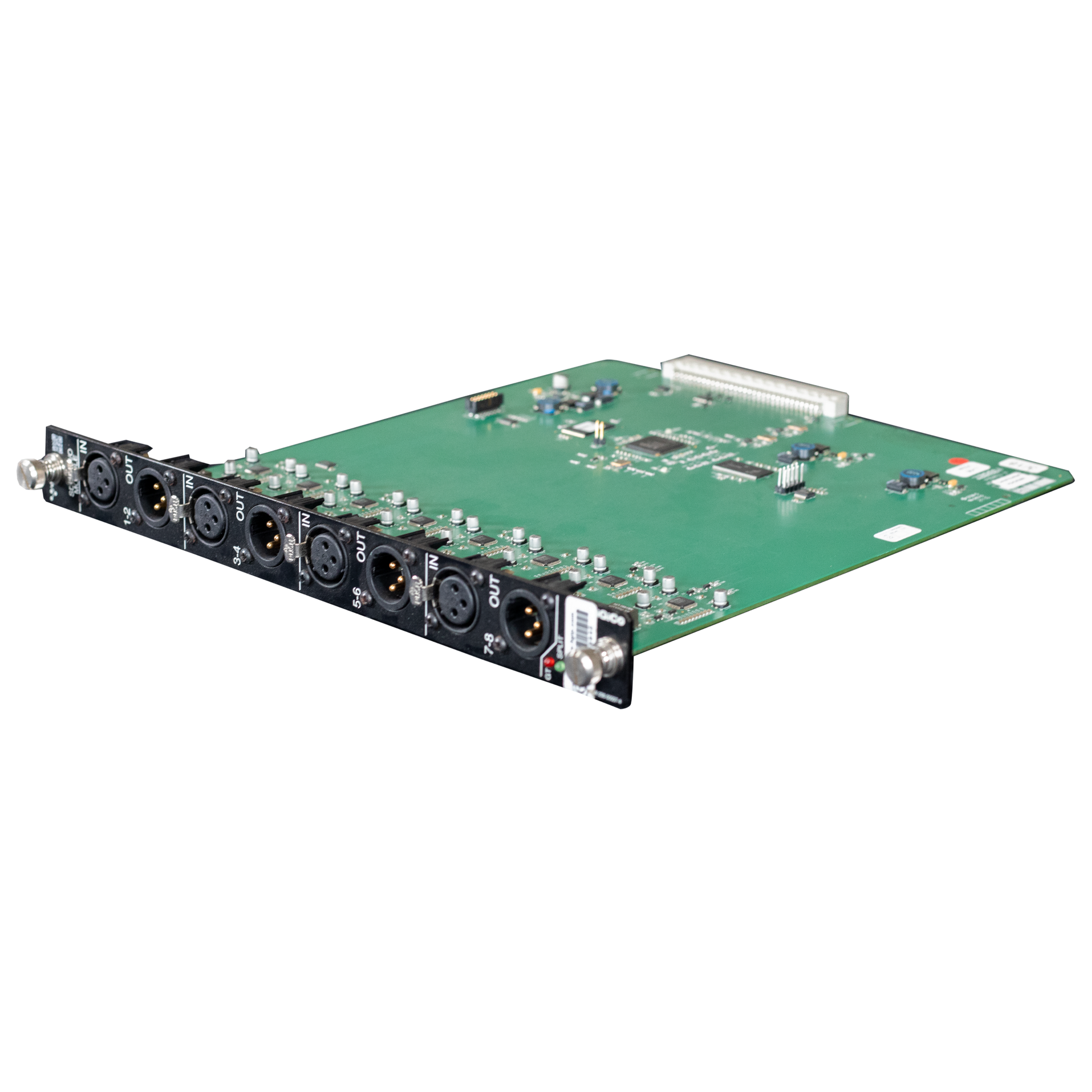

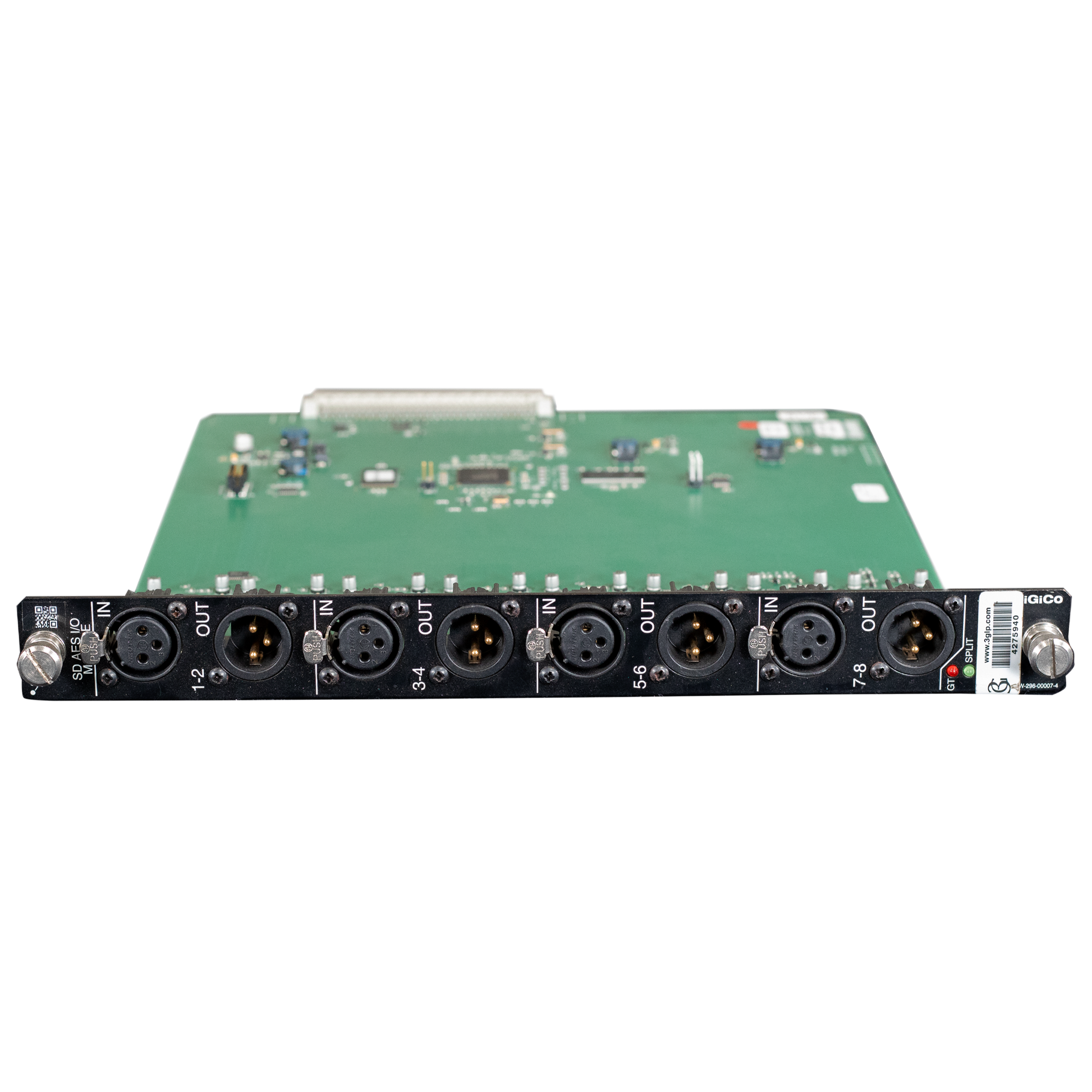

DiGiCo AES I/O Card – 4 Stereo Input & Output Channels
Enhance your DiGiCo system with this AES I/O card, providing 4 stereo AES input and output channels for the SD-Rack, SD-MiNi Rack, SD-Nano Rack, and 4REA4. Featuring built-in sample rate conversion on both inputs and outputs, it ensures seamless audio integration. Designed for the SD-Range and 4REA4, this card supports hot-plugging for quick and easy installation.
AES Inputs
- Standards: AES3 (IEC-60958 Type I) 2003
- Input Impedance: 110 Ohm transformer balanced, Optional: 75 Ohm unbalanced
- Sample Rate (Input Range): 32 kHz to 99 kHz (with conversion)
- Operating Rate: 44.1 kHz*, 48 kHz, 96 kHz +/- 2Hz
- Frequency Response: 20 Hz to 20 kHz (0dBFS)
- Resolution: 24dB (conversion off)
AES Outputs
- Standards: AES3 (IEC-60958 Type I) 2003
- Output Impedance: 110 Ohm transformer balanced, Optional: 75 Ohm unbalanced
- Operating Rate: 44.1 kHz*, 48 kHz, 96 kHz +/- 2Hz
- Output Jitter: 120-100K peak 3ns average
- Frequency Response: 20 Hz to 20 kHz (0dBFS)
- Resolution: 24dB (conversion off)
