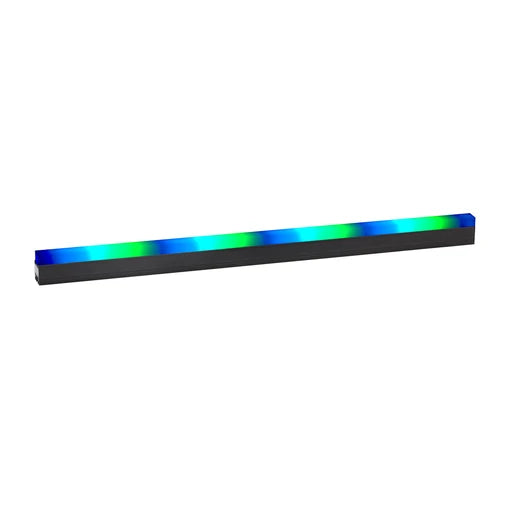

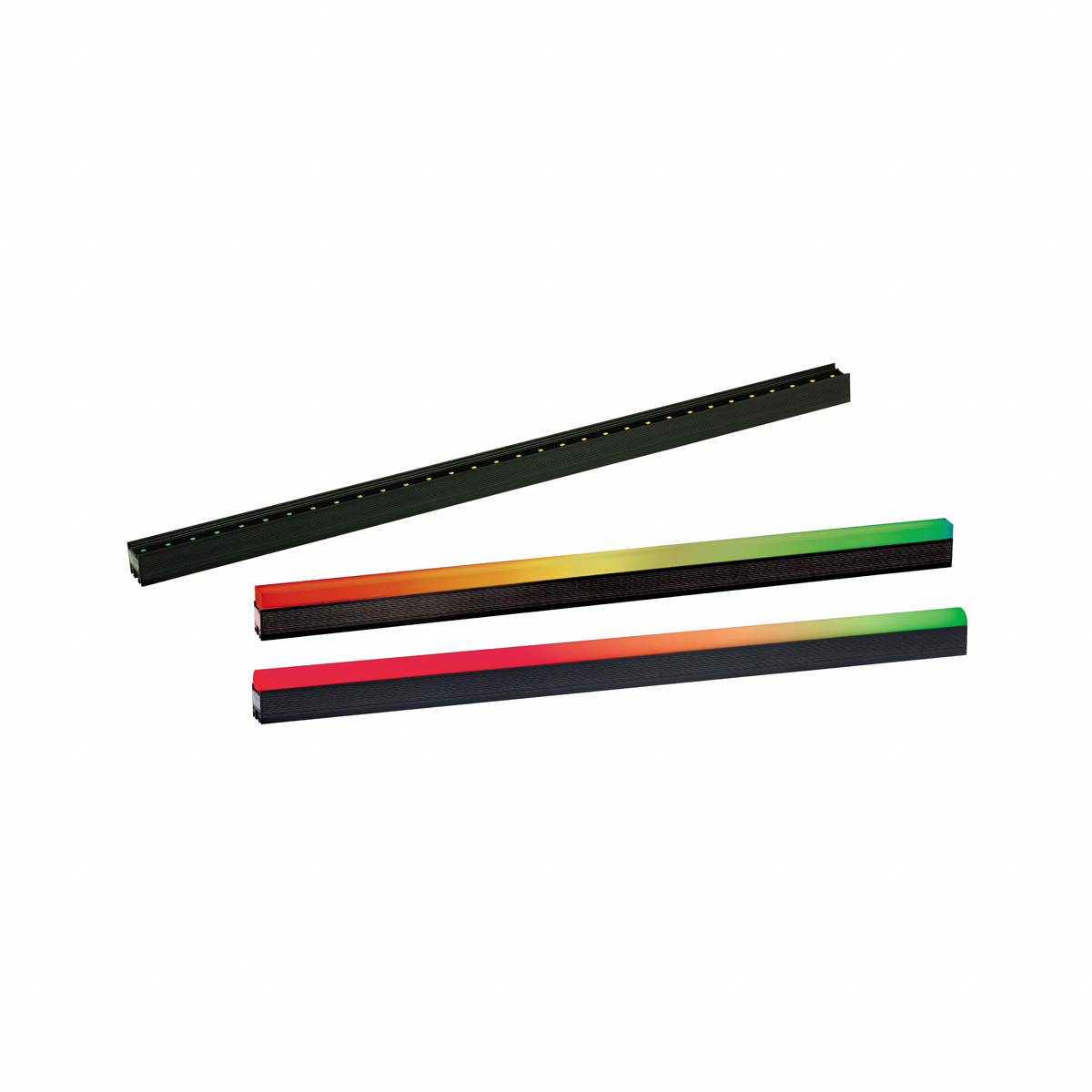

The Martin VDO Sceptron 20 320mm is a compact, outdoor-rated LED video fixture designed for creative visual applications. With a 20 mm pixel pitch and high-quality 16-bit per color image processing, it delivers vibrant and precise visuals. The fixture supports both Martin's P3 System Controller and DMX protocols, allowing for flexible control options. Its integrated power and data cabling system simplifies installation, enabling long daisy-chains with multiple fixtures per run. The VDO Sceptron 20 320mm is ideal for dynamic stage designs, architectural installations, and rental applications.

Key Features:

• Pixel Pitch: 20 mm

• Length: 320 mm (12.6 in.)

• Brightness: 125 cd/m (calibrated)

• Luminous Output: 375 lm/m (calibrated)

• Color Resolution: 16-bit per color (48-bit per pixel)

• Control Protocols: Martin P3 System Controller and DMX

• Control Modes: RGB, basic, segment, and pixel-level

• Viewing Angle: 120° x 120°

• Power Consumption: 17 W per meter

• Protection Rating: IP65

• Mounting Options: Flat surface, pedestal, or suitable support

• Optical Accessories: Interchangeable diffusers and lenses
