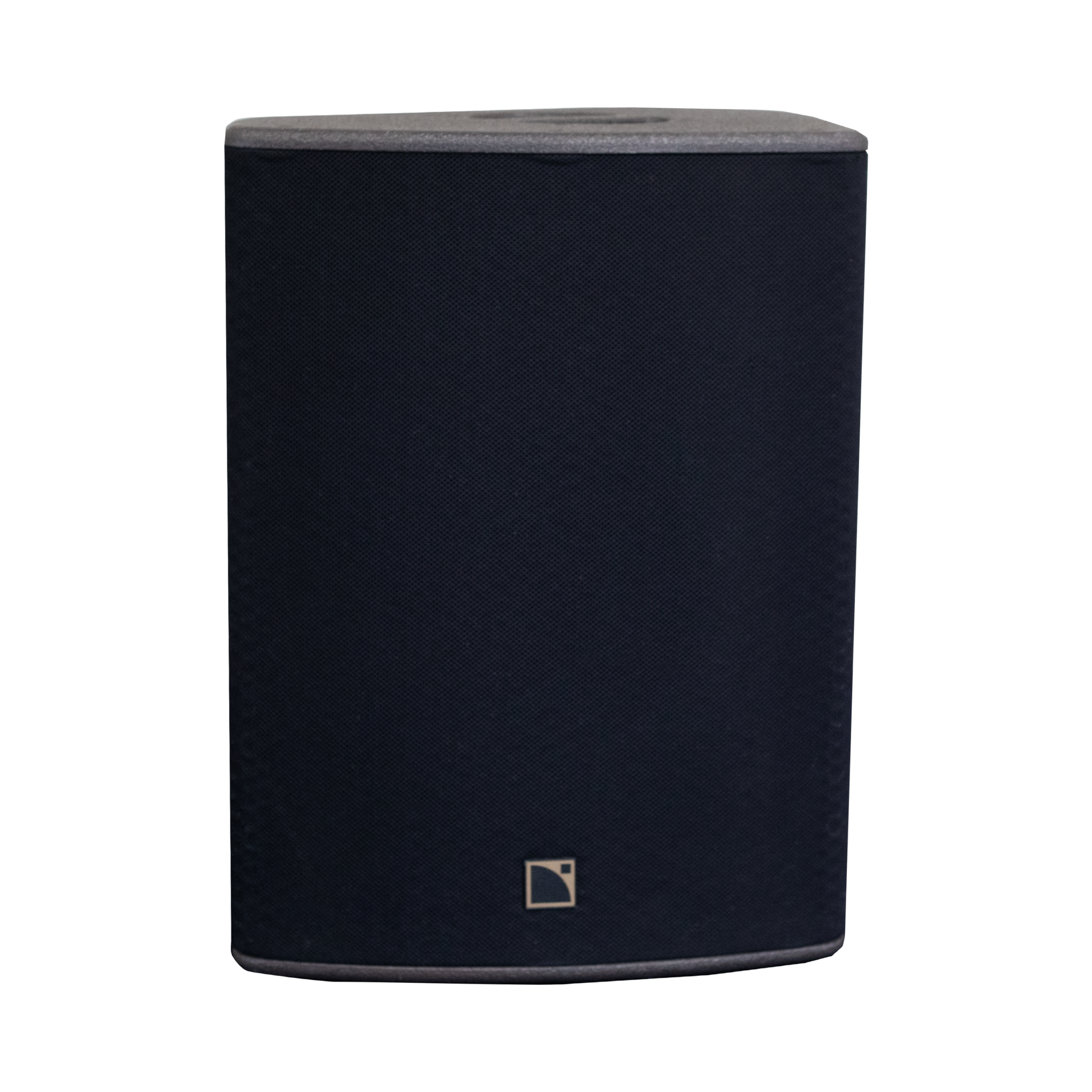

The L-Acoustics X15 HiQ is a high-performance, two-way active coaxial loudspeaker engineered for demanding live sound applications. It features a 15-inch low-frequency driver and a 3-inch diaphragm compression driver, both aligned coaxially to deliver precise 60° horizontal and 40° vertical coverage patterns. This design ensures strong vocal impact with minimal feedback, making it ideal for stage monitoring and front-of-house applications. The X15 HiQ incorporates L-Vents™ laminar venting technology, which reduces turbulence noise and enhances low-frequency clarity. Its rugged construction, featuring premium-grade Baltic beech and birch plywood, ensures durability for touring and live performances. Weighing 21 kg (46.3 lbs), the X15 HiQ is compatible with L-Acoustics' LA4X, LA8, and LA12X amplified controllers, providing seamless integration into professional sound systems.
**System Data:**
- Frequency Response (-10 dB): 55 Hz – 20 kHz
- Maximum SPL (1 m, free field): 138 dB
- Nominal Directivity (-6 dB):
- Vertical: 60° (symmetric)
- Horizontal: 40° (symmetric)
- Monitoring Angle:
- Without risers: 35°
- With risers: 55°
**Transducers:**
- Low Frequency (LF): 1 × 15" neodymium cone driver
- High Frequency (HF): 1 × 3" neodymium diaphragm compression driver
- Acoustical Load:
- LF: Bass-reflex with L-Vents
- HF: Ellipsoidal waveguide
**Impedance:**
- Nominal Impedance:
- LF: 8 Ω
- HF: 8 Ω

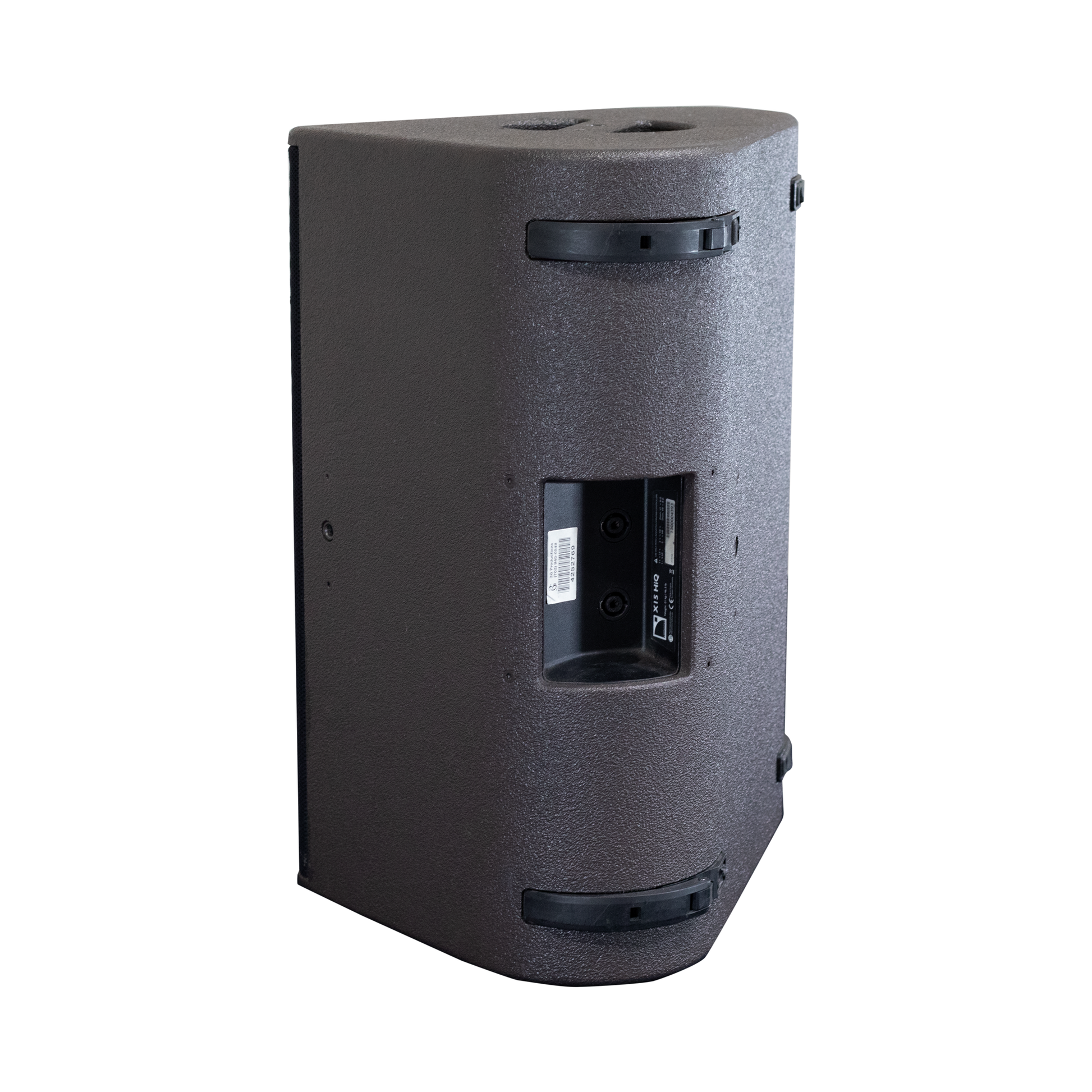

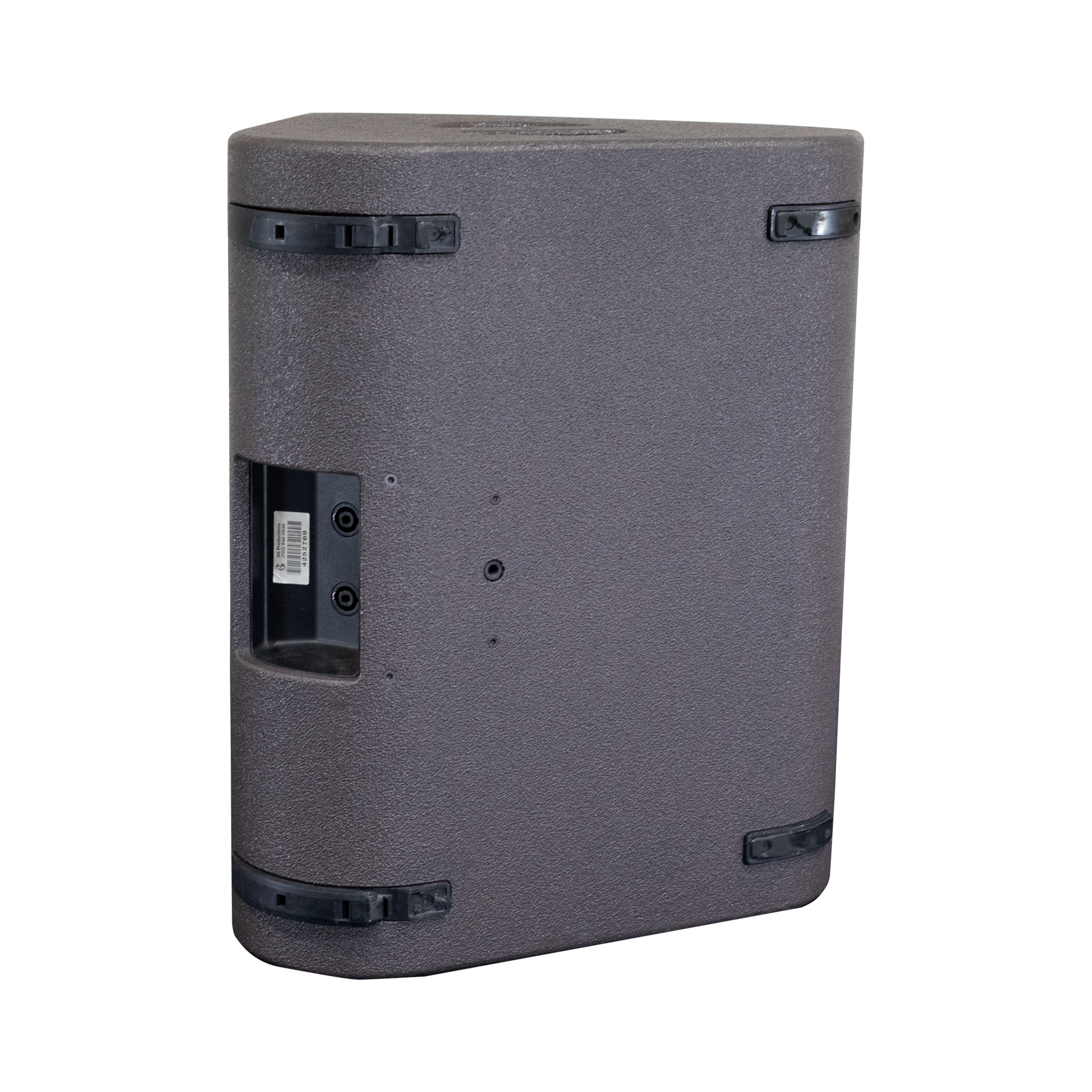

**Connectors:**
- Input: 1 × 4-point SpeakON
- Link: 1 × 4-point SpeakON

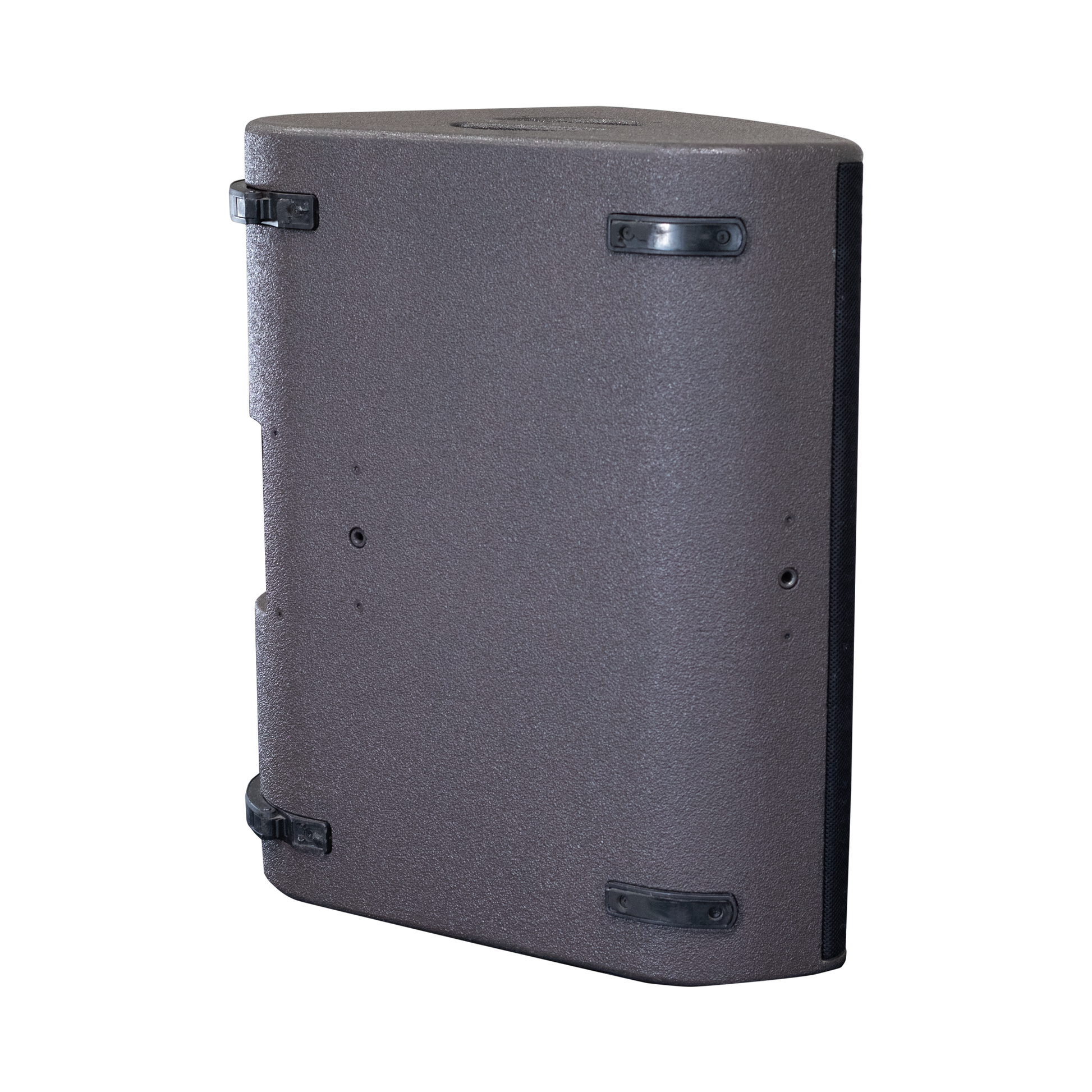

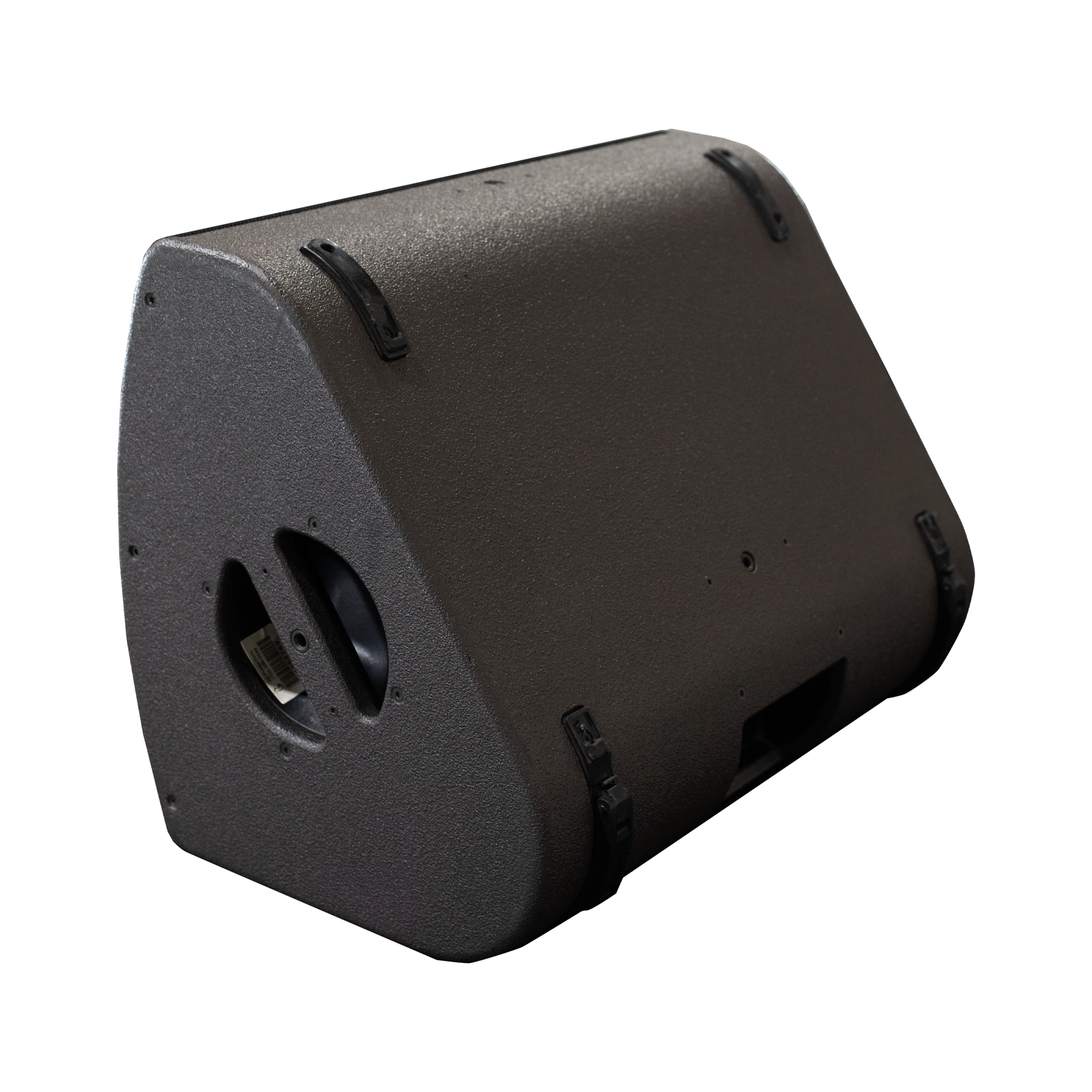

**Rigging and Handling:**
- Handles: 2 integrated handles
- Threaded Inserts:
- 1 × M8 (DIN580) compatible
- 4 × M10
- Pole Socket: 2 × 35 mm
**Physical Specifications:**
- Weight (Net): 21 kg (46.3 lbs)
- Cabinet Material: Premium-grade Baltic beech and birch plywood

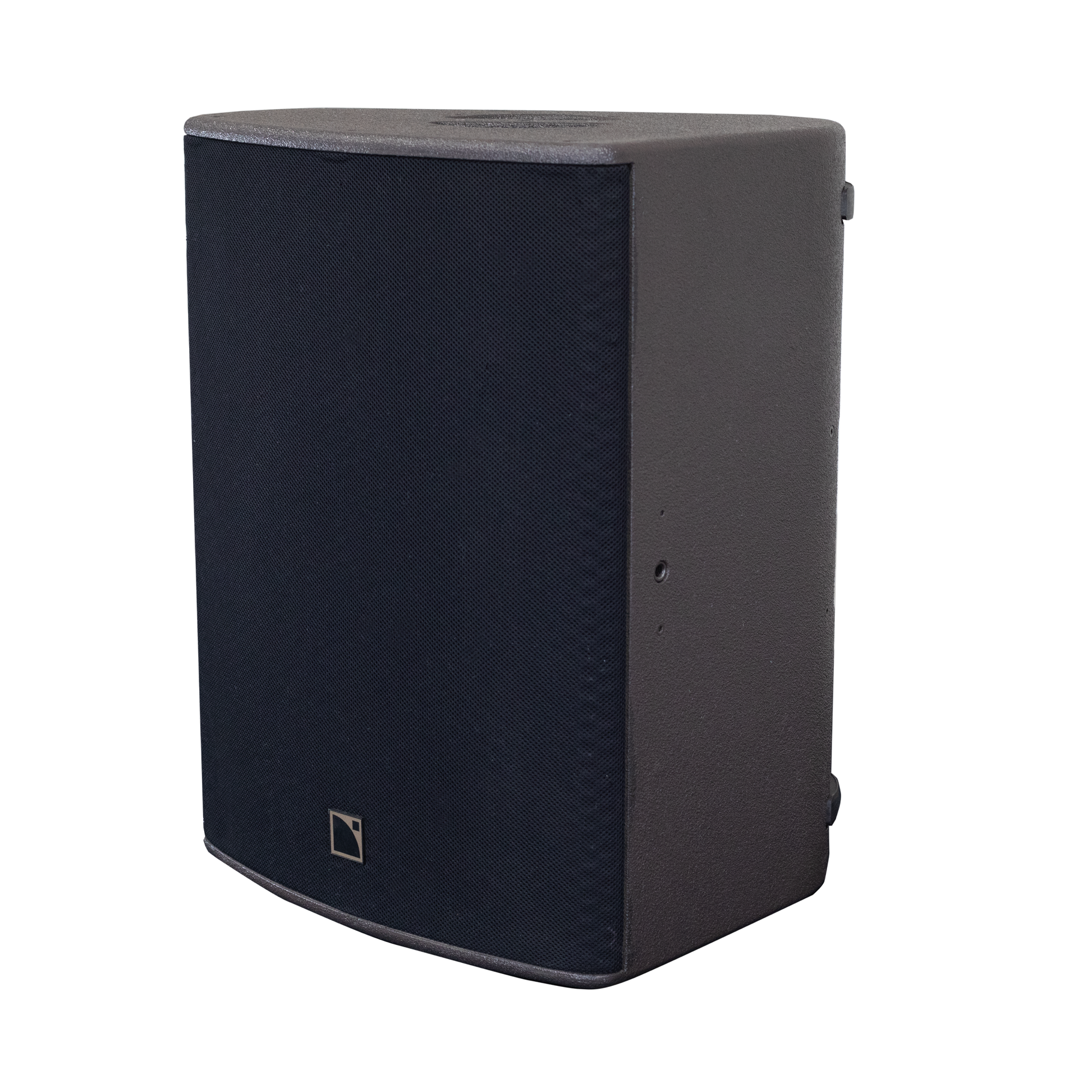

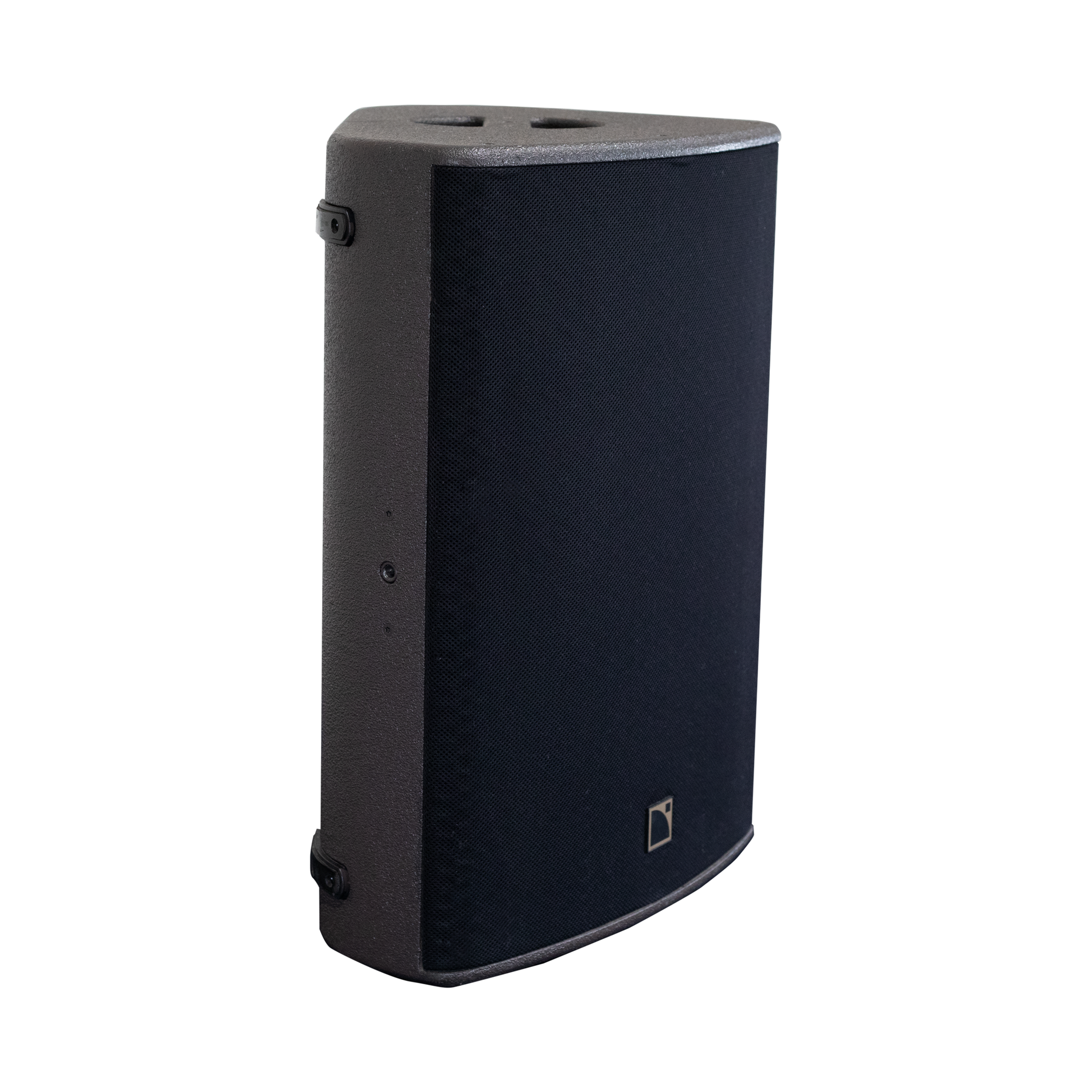

- Front Protection: Steel grill with anti-corrosion coating and acoustically neutral 3D fabric
- Finish Options:
- Dark grey brown (Pantone 426 C)
- Custom RAL code available upon special order
- Ingress Protection Rating: IP43
