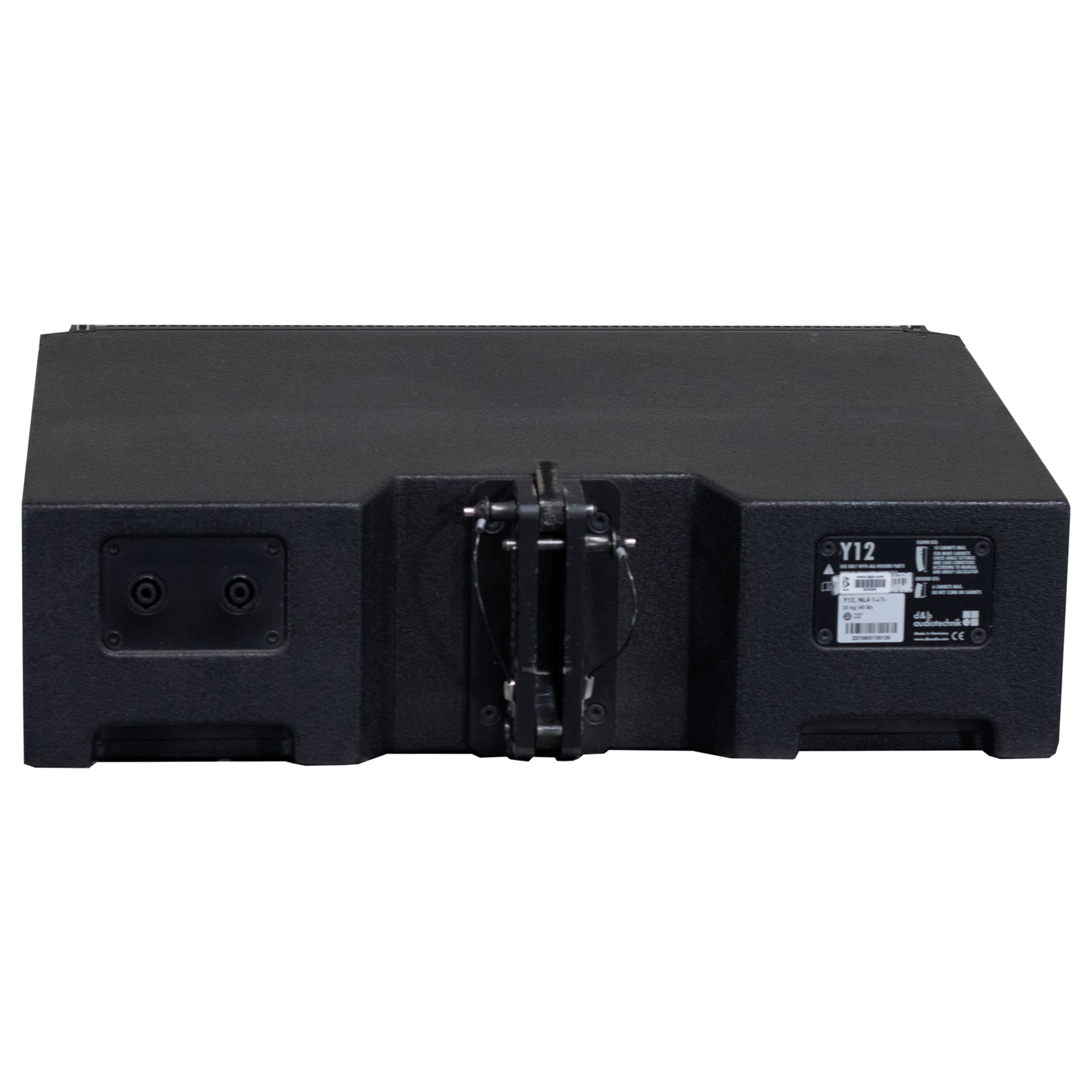

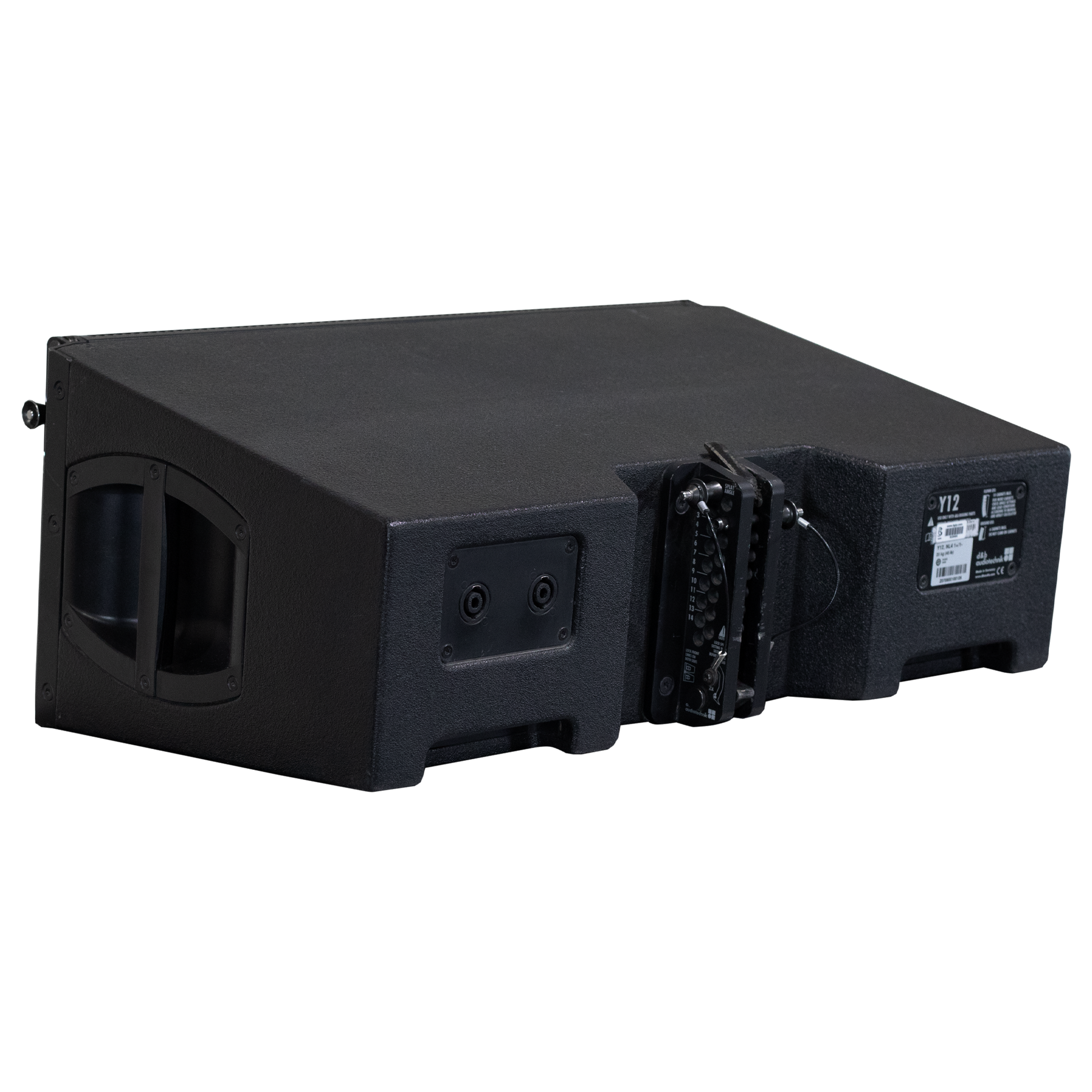

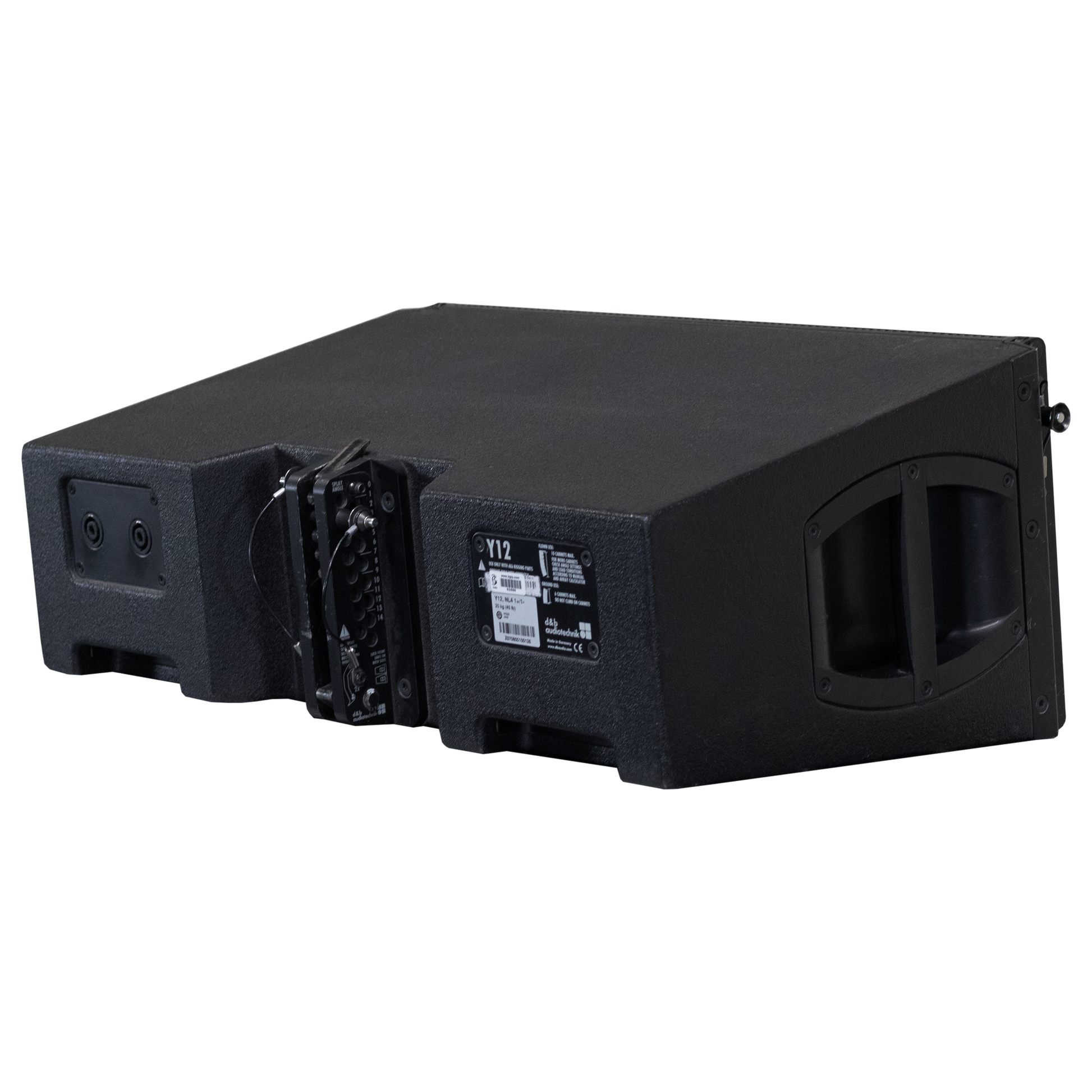

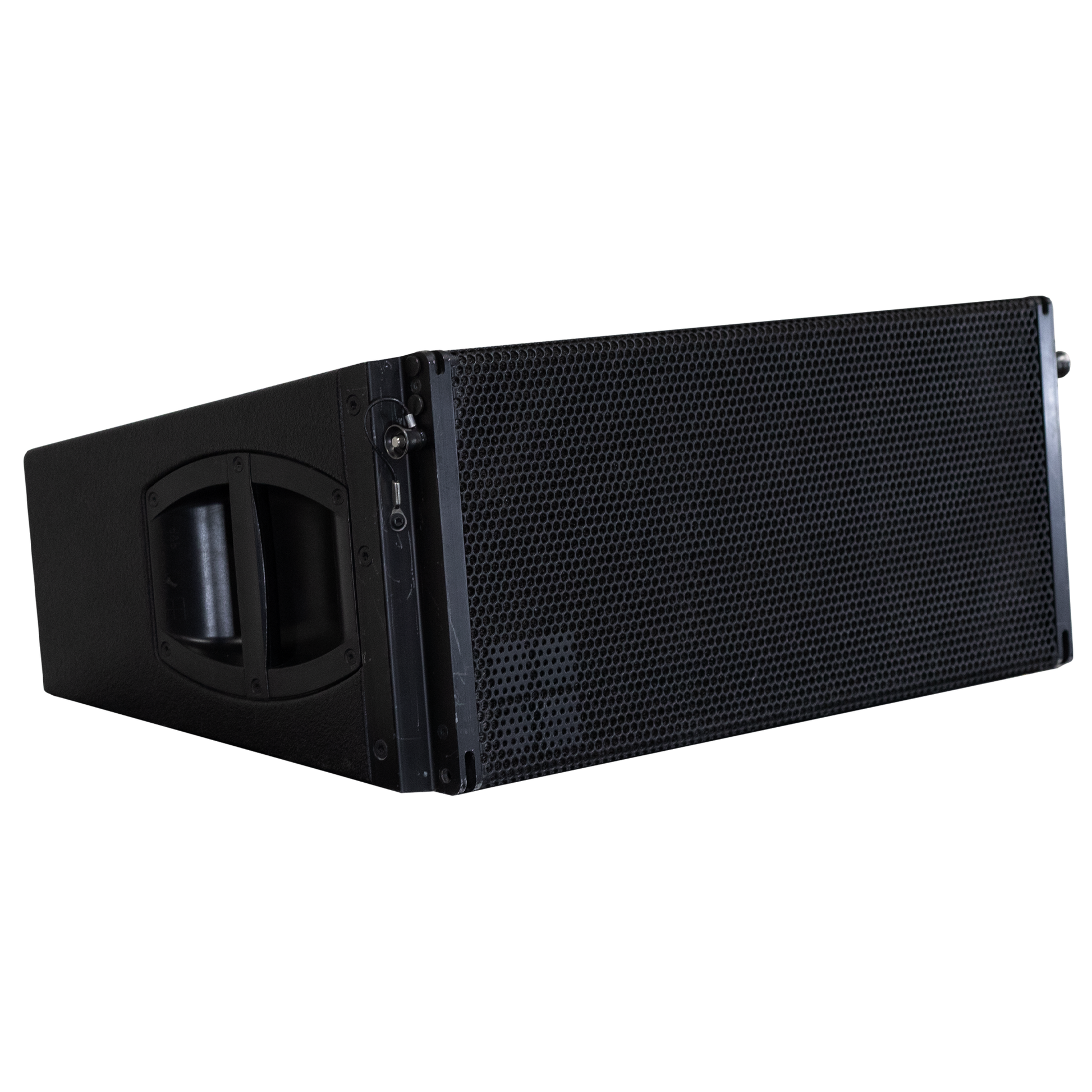

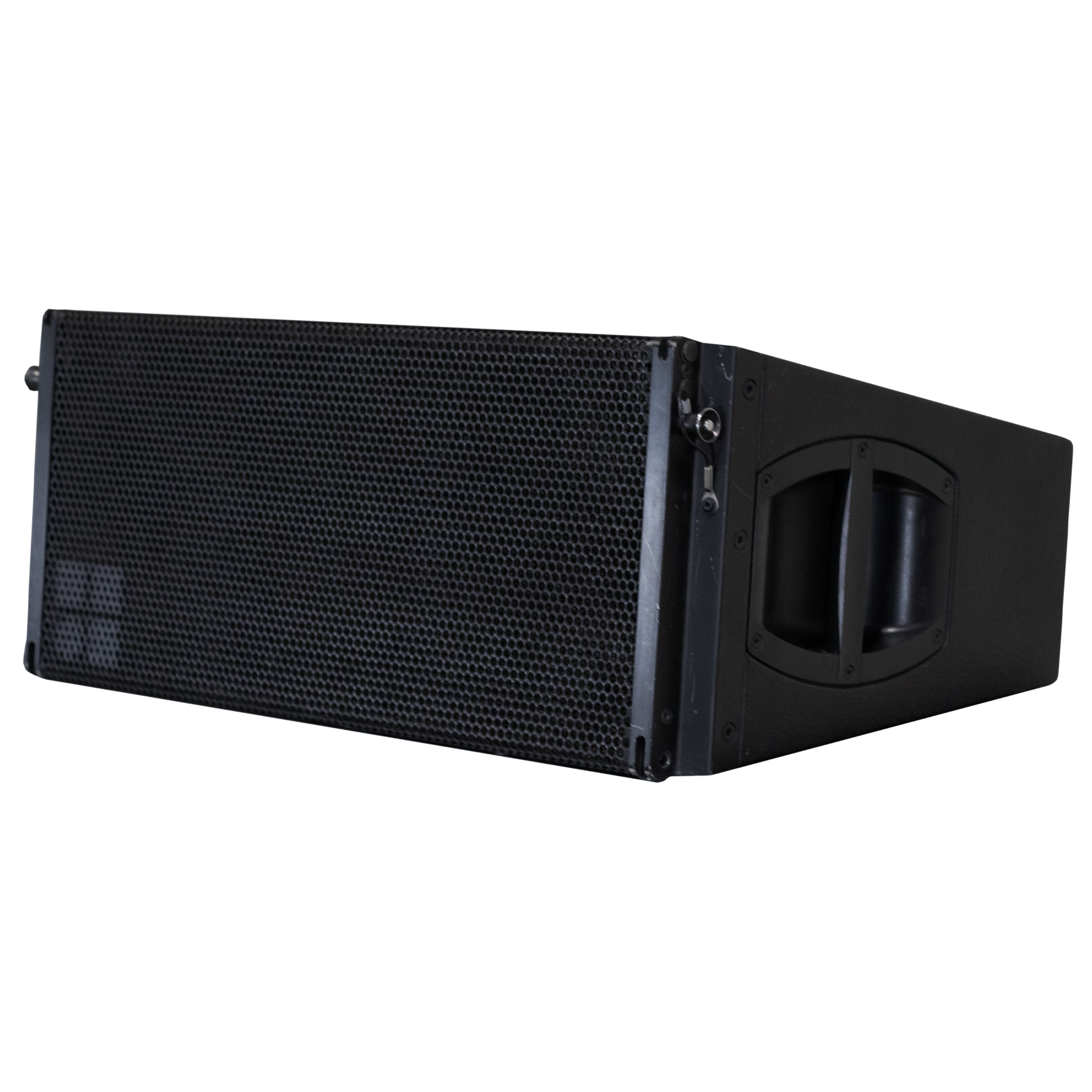

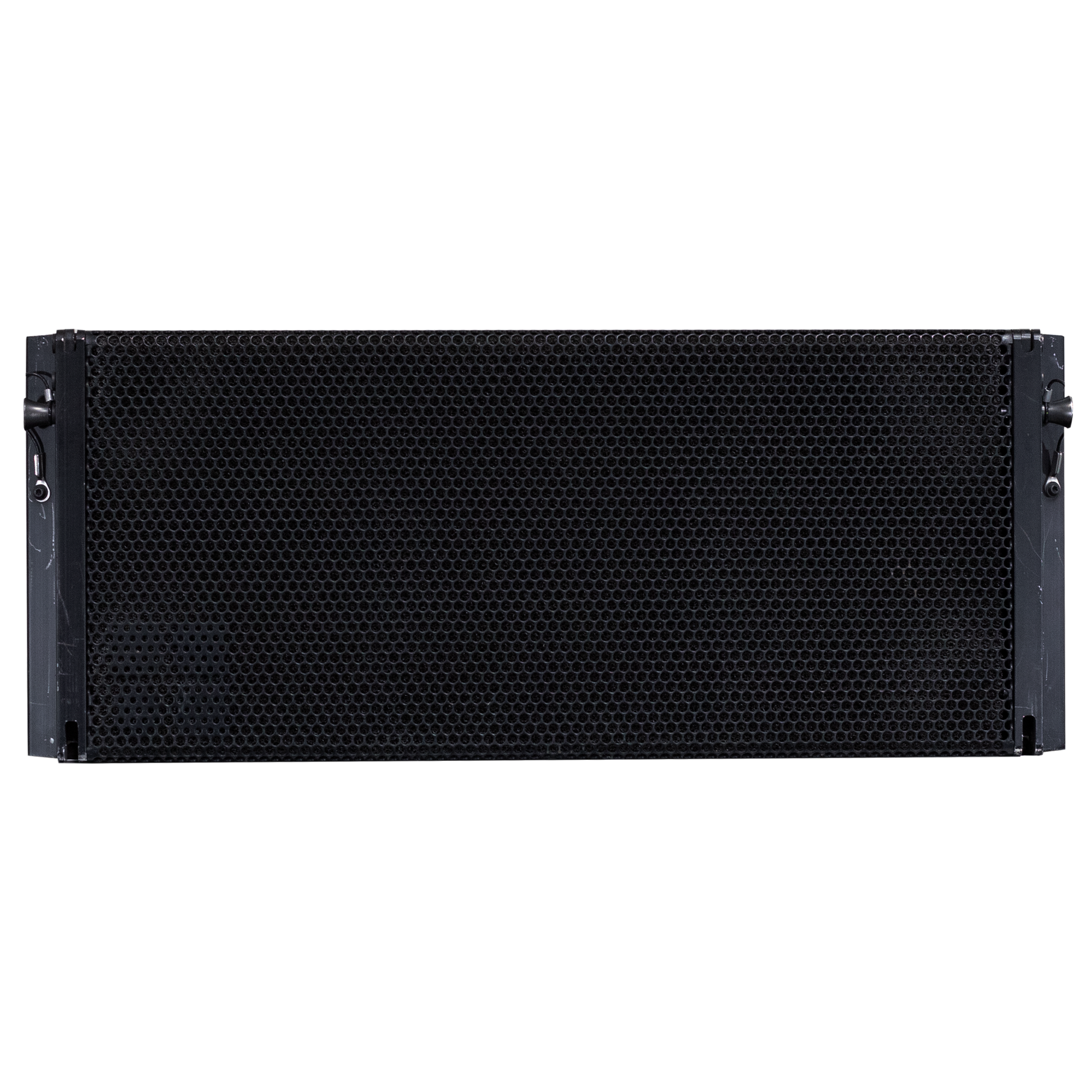

The d&b audiotechnik Y12 is a high-performance, 2-way passive line array loudspeaker designed for versatility in both mobile and installation applications. Its compact design and advanced features make it suitable for a variety of venues and events.

Key Features:

• Driver Configuration: Equipped with two 8" neodymium LF drivers in a dipole arrangement and a centrally mounted 1.4" compression driver with a wave transformer, the Y12 ensures clear and powerful sound reproduction.

• Horizontal Dispersion: Offers 120° horizontal directivity, maintaining consistent coverage down to 500 Hz, making it ideal for wide-area sound distribution.

• High Output Capability: Delivers a maximum sound pressure level of 139 dB at 1 meter with appropriate amplification, suitable for demanding audio environments.

• Flexible Rigging: Supports vertical arrays of up to 24 loudspeakers with adjustable splay angles from 0° to 14° in 1° increments, providing adaptability for various venue sizes and configurations.

• Durable Construction: Constructed from marine plywood with a robust Polyurea cabinet protection finish, the Y12 is built to withstand the rigors of touring and demanding environments.

Technical Specifications:

• Frequency Response (-5 dB): 54 Hz – 19 kHz

• Nominal Impedance: 8 Ω

• Power Handling (RMS/Peak 10 ms): 400 W / 1600 W

• Dimensions (H x W x D): 257 mm x 630 mm x 375 mm (10" x 24.8" x 14.8")

• Weight: 20 kg (44 lb)

Amplification Requirements:

The Y12 is compatible with various d&b amplifiers, including the D6, D12, D20, D80, and D40 models, ensuring optimal performance tailored to specific application needs.

Applications:

Ideal for small to medium-scale sound reinforcement, the Y12 excels in environments such as theaters, concert halls, and corporate events, delivering clear, consistent audio coverage.
