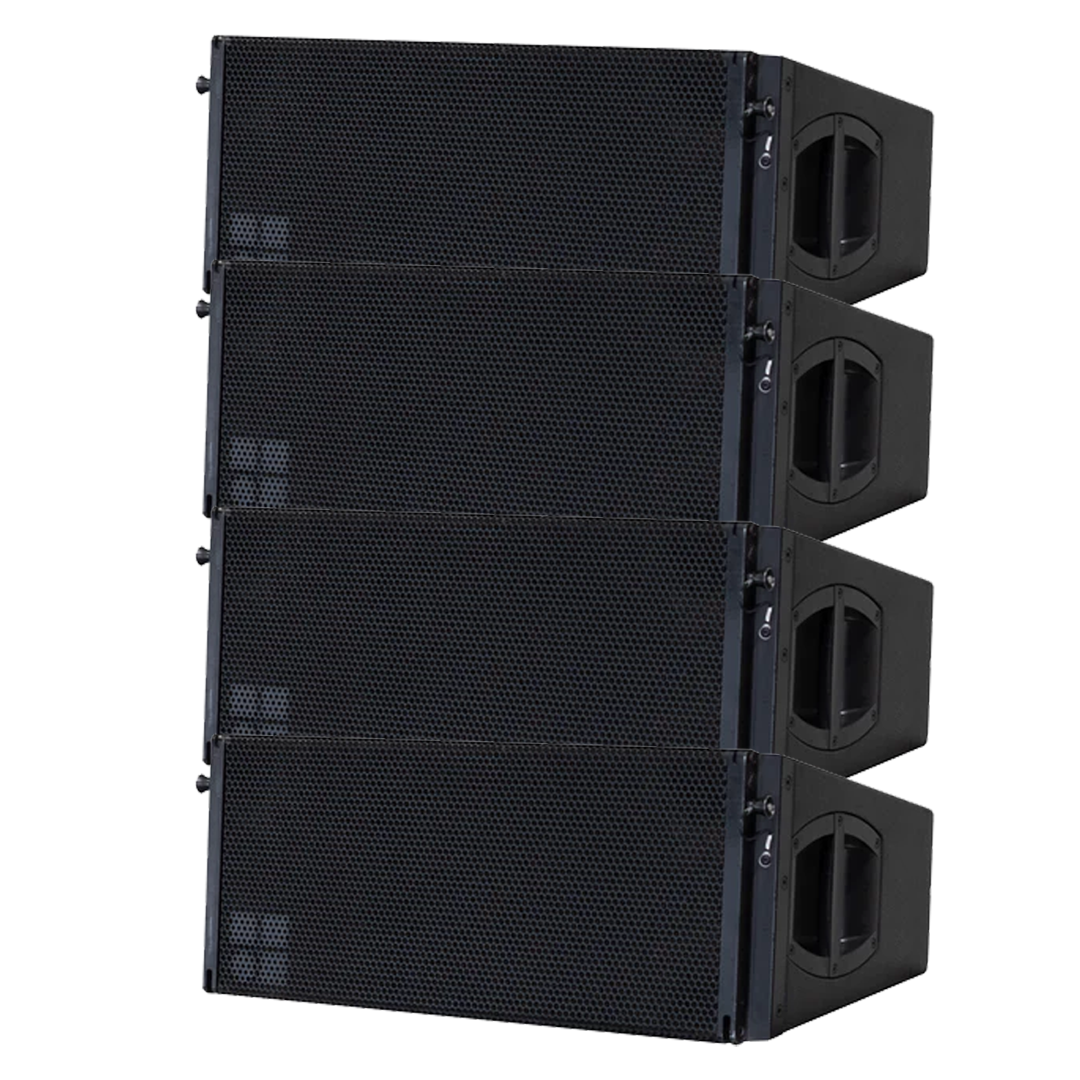

d&b audiotechnik Y8 or Y12 Line Array Loudspeaker

The d&b audiotechnik Y8/12 is a high-performance, 2-way passive line array loudspeaker engineered for versatility and exceptional sound quality in both mobile and installation applications. Designed for use in vertical columns, the Y8/12 delivers precise horizontal directivity and extended low-frequency response.

Key Features:

• Advanced Driver Configuration: Features two 8" neodymium magnet LF drivers in a dipole arrangement and a centrally mounted 1.4" exit compression driver with a wave transformer.

• Controlled Dispersion: Provides 80°/120° horizontal directivity, maintaining consistent coverage down to 500 Hz.

• High Output Capability: Achieves a maximum sound pressure level of 139 dB at 1 meter with appropriate amplification.

• Flexible Rigging Options: Supports vertical arrays of up to 24 cabinets with splay angles adjustable from 0° to 14° in 1° increments, accommodating various venue sizes and configurations.

• Durable Construction: Constructed from marine plywood with a robust Polyurea cabinet protection finish, featuring integrated handles and rigging hardware for ease of transport and setup.

Technical Specifications:

• System Type: 2-way passive line array loudspeaker

• Frequency Response (-5 dB): 54 Hz – 19 kHz

• Nominal Impedance: 8 Ω

• Power Handling (RMS/Peak 10 ms): 400 W / 1600 W

• Dimensions (H x W x D): 257 mm x 630 mm x 375 mm (10" x 24.8" x 14.8")

• Weight: 20 kg (44 lb)

Amplification Requirements:

The Y8/12 is compatible with various d&b amplifiers, including the D6, D12, D20, D80, and D40 models, ensuring optimal performance tailored to specific application needs.

Applications:

Ideal for small to medium-scale sound reinforcement, the Y8/12 excels in environments such as theaters, concert halls, and corporate events, delivering clear, consistent audio coverage.
