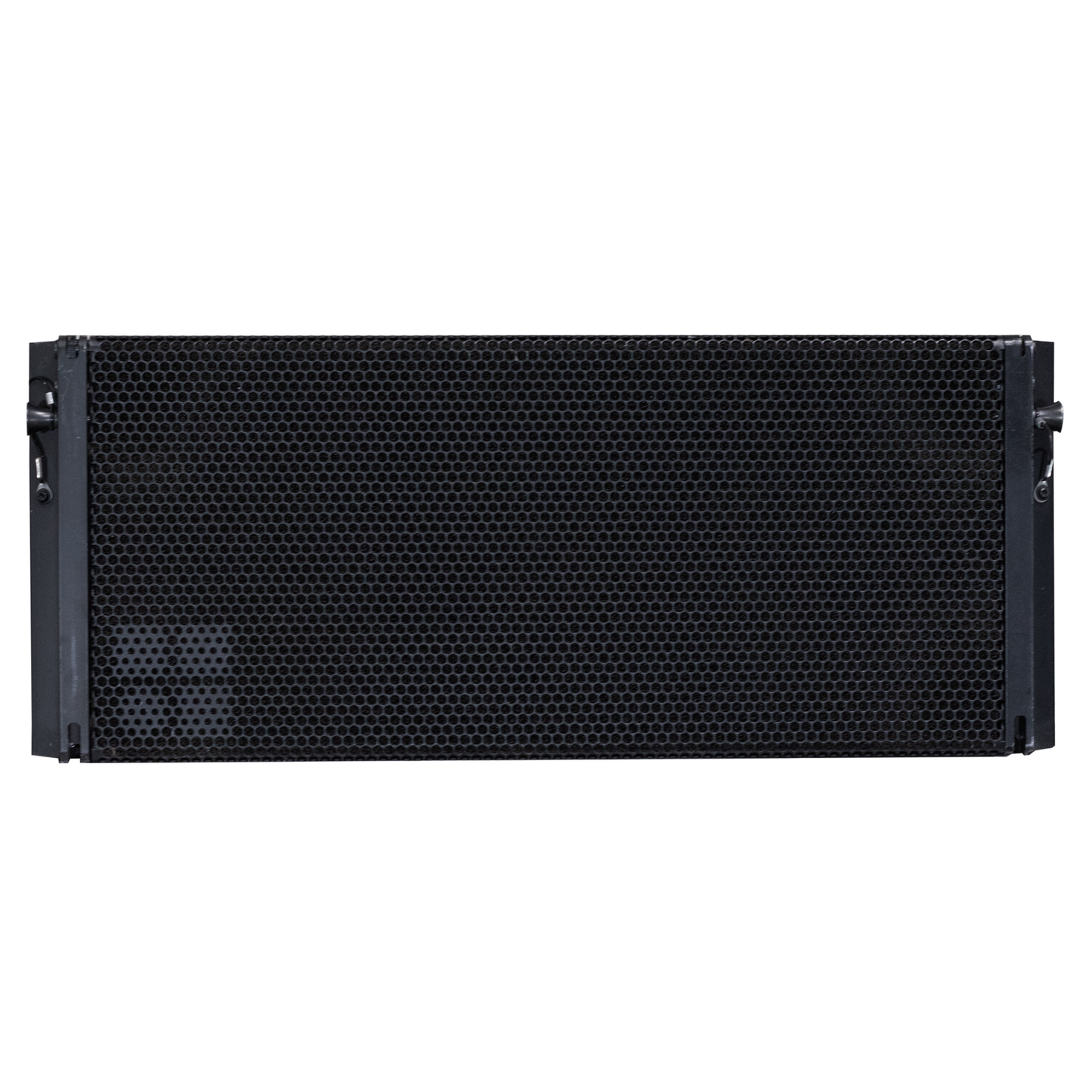

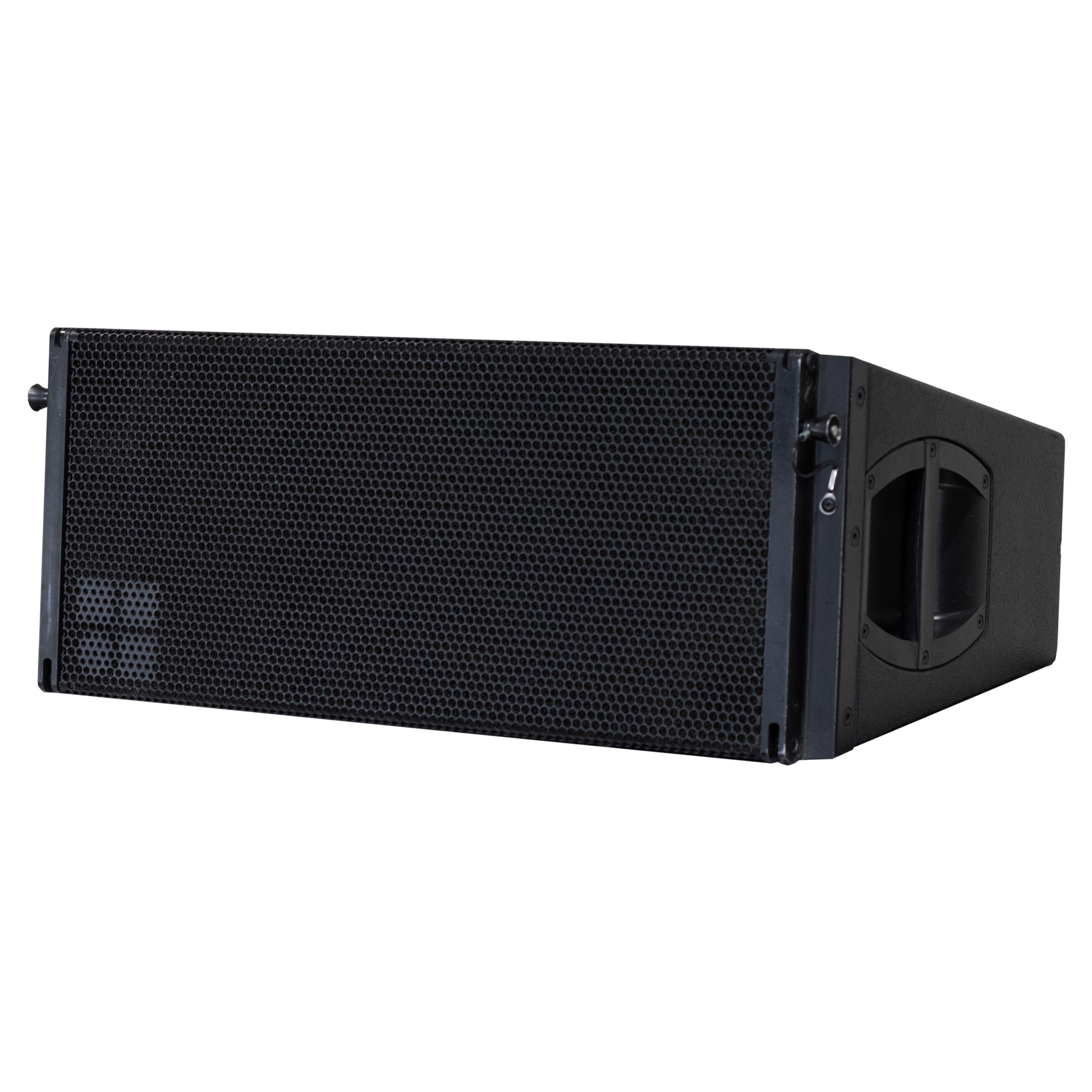

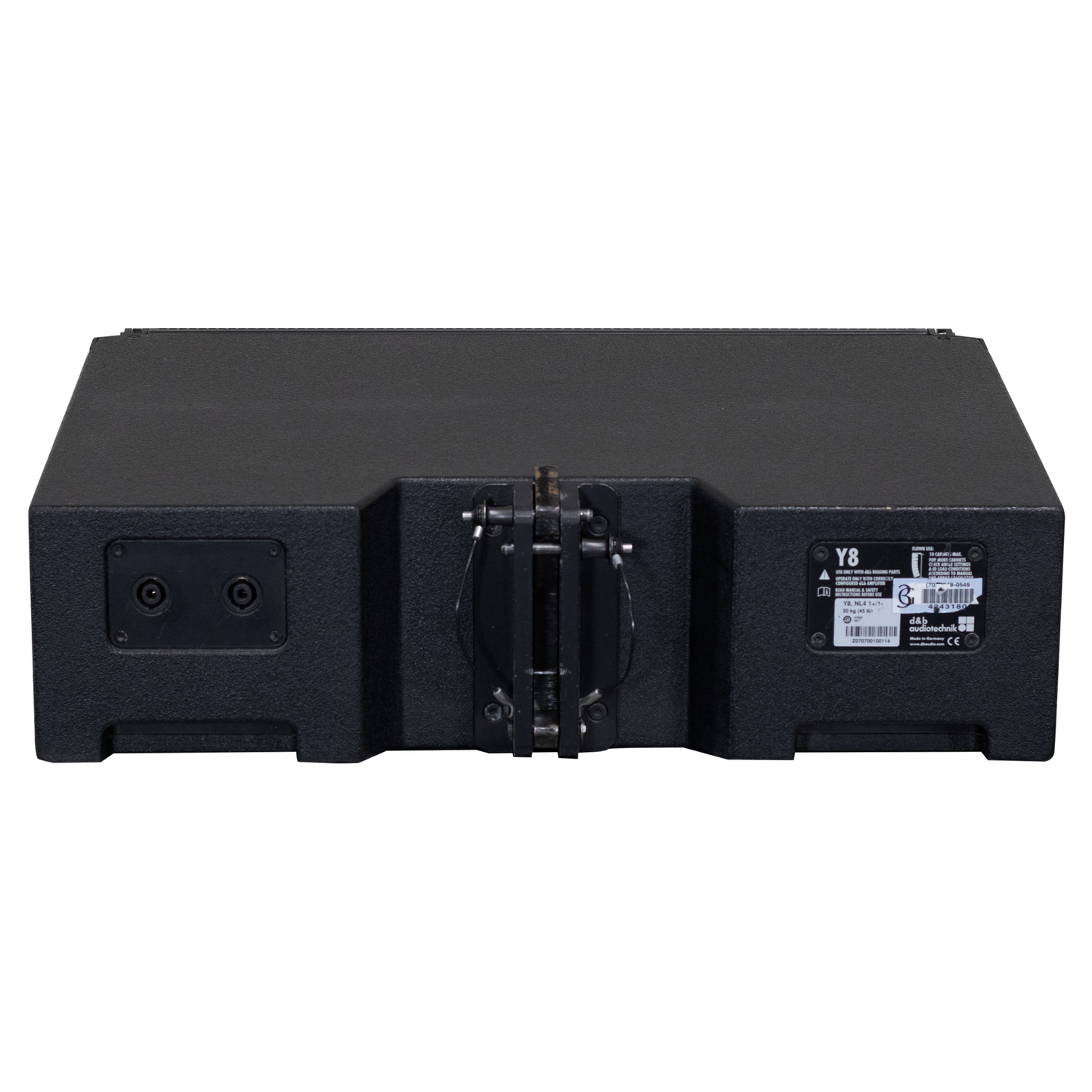

d&b audiotechnik Y8 Line Array Loudspeaker

The d&b audiotechnik Y8 is a high-performance, 2-way passive line array loudspeaker engineered for versatility and exceptional sound quality in both mobile and installation applications. Designed for use in vertical columns, the Y8 delivers precise horizontal directivity and extended low-frequency response.

Key Features:

• Advanced Driver Configuration: Features two 8" neodymium magnet LF drivers in a dipole arrangement and a centrally mounted 1.4" exit compression driver with a wave transformer.

• Controlled Dispersion: Provides 80° horizontal directivity, maintaining consistent coverage down to 500 Hz.

• High Output Capability: Achieves a maximum sound pressure level of 139 dB at 1 meter with appropriate amplification.

• Flexible Rigging Options: Supports vertical arrays of up to 24 cabinets with splay angles adjustable from 0° to 14° in 1° increments, accommodating various venue sizes and configurations.

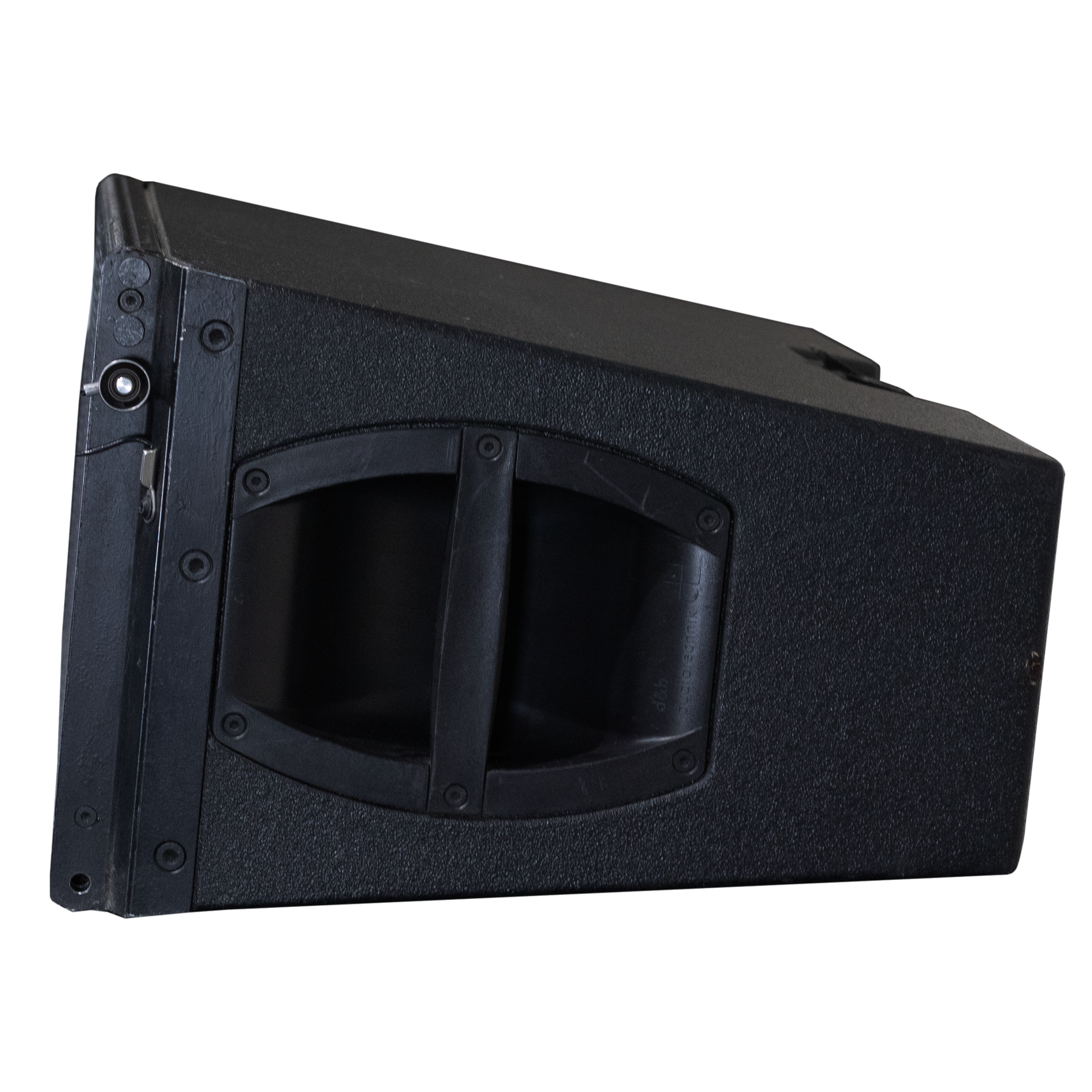

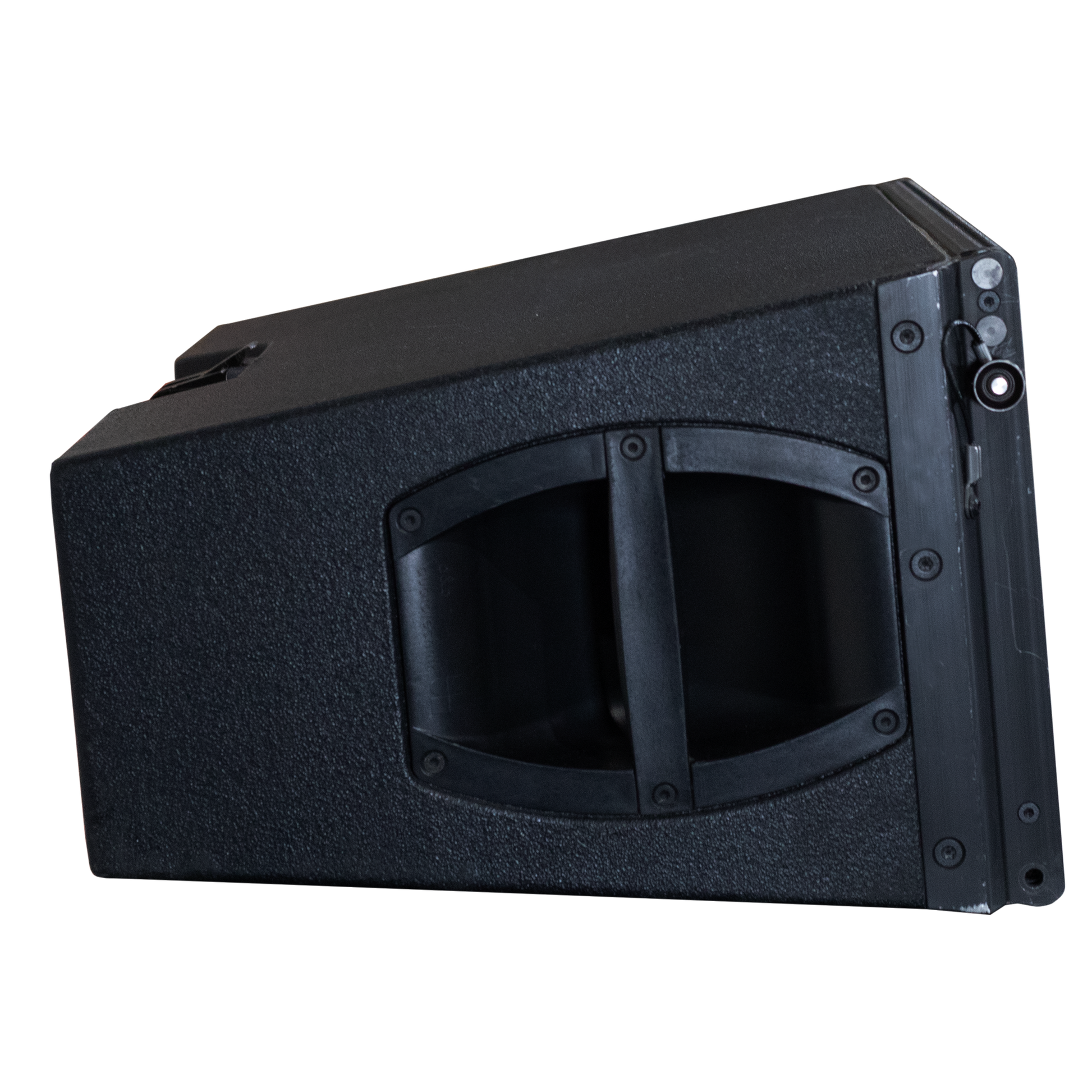

• Durable Construction: Constructed from marine plywood with a robust Polyurea cabinet protection finish, featuring integrated handles and rigging hardware for ease of transport and setup.

Technical Specifications:

• System Type: 2-way passive line array loudspeaker

• Frequency Response (-5 dB): 54 Hz – 19 kHz

• Nominal Impedance: 8 Ω

• Power Handling (RMS/Peak 10 ms): 400 W / 1600 W

• Dimensions (H x W x D): 257 mm x 630 mm x 375 mm (10" x 24.8" x 14.8")

• Weight: 20 kg (44 lb)

Amplification Requirements:

The Y8 is compatible with various d&b amplifiers, including the D6, D12, D20, D80, and D40 models, ensuring optimal performance tailored to specific application needs.

Applications:

Ideal for small to medium-scale sound reinforcement, the Y8 excels in environments such as theaters, concert halls, and corporate events, delivering clear, consistent audio coverage.
